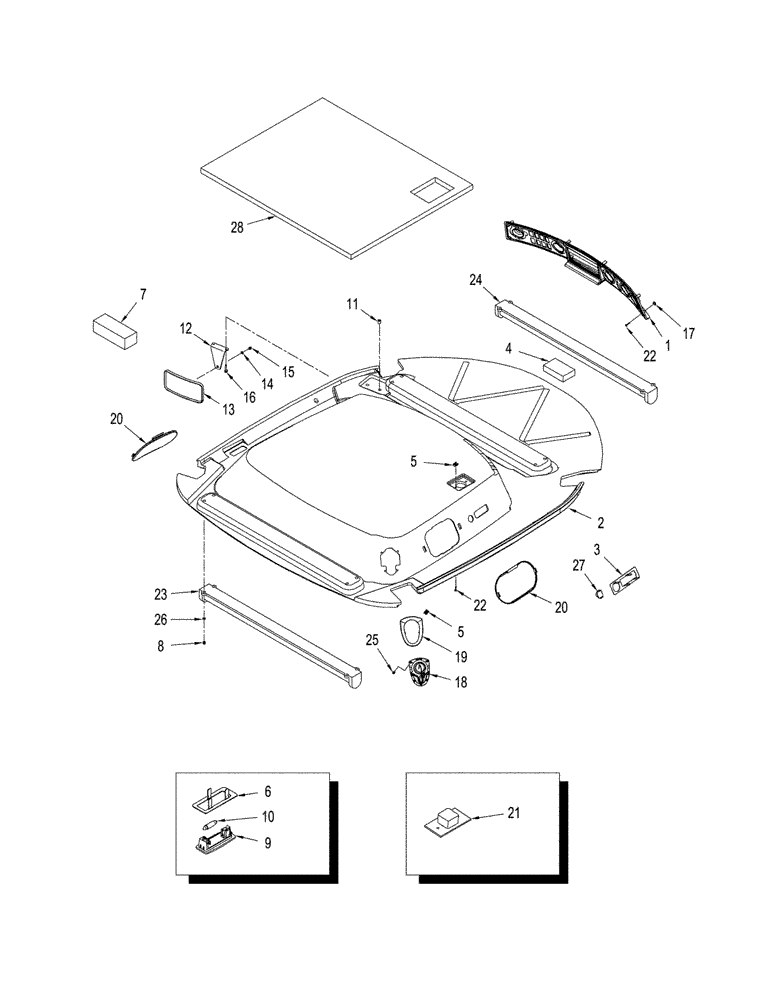

Запчасти Case IH STEIGER 485 (09-17) - CAB - HEADLINER AND CONTROL PANEL, DELUXE AND LUXURY CAB (09) - CHASSIS

1

87453141

PANEL

Overhead Control

1шт.

359616A3

ROOF LINING

Inc. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Headliner

1шт.

3

305485A2

RETAINER

Domelight

1шт.

4

328039A1

PAD

No. 6 x 5/8

3шт.

5

302862A1

SPRING NUT,4.2 Thread

6шт.

6

305484A2

RETAINER

Domelight

2шт.

7

328037A1

PAD

9 x 20 x 1,6 mm

1шт.

8

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

9

1983391C1

LAMP,12V, 10W

Dome, Inc. 10

3шт.

10

E35556

BULB,12V, 10W

1шт.

11

02-3010T1

SPACER

1шт.

12

64-086T3

BRACKET

1шт.

13

A177462

MIRROR

Rearview, Inc. 14, 15

1шт.

14

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

15

19-5565

LOCK NUT,1/4"-28, GB

1шт.

16

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

17

177269A1

SPRING NUT,M4.2

8шт.

18

372892A1

LAMP

Map

1шт.

19

360364A1

BEZEL

Map Lamp

1шт.

20

358683A1

GRILLE

Speaker

2шт.

21

83882C91

LAMP

1шт.

22

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

10шт.

23

87450400

VISOR, SUN

Rear

1шт.

24

87450399

VISOR, SUN

Front

1шт.

25

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

4шт.

26

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6 x 12 x 1.6 mm

8шт.

27

280628A1

PLUG

Switch

1шт.

Used without Mirror

1шт.

28

384759A1

FOAM

1шт.
