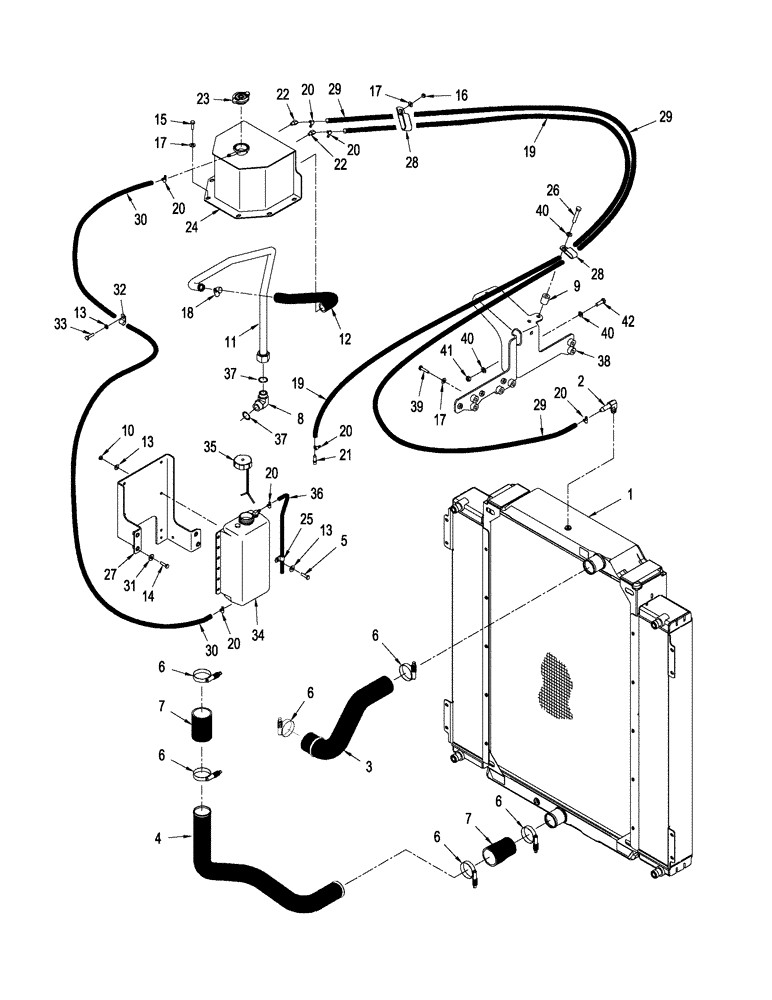

Запчасти Case IH STEIGER 485 (02-02) - RADIATOR AND HOSES, STEIGER 485 (02) - ENGINE

1

87434388

RADIATOR

Engine Coolant, See Figure: 02-05

1шт.

2

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

3

87707664

RADIATOR HOSE,57.20 mm ID, 61.00 mm ID x 179.00 mm, SAE 20R4 Class D1

Upper

1шт.

4

87377597

TUBE,2.5" OD

Lower Radiator

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

6

L115548

CLAMP,57.15mm - 79.38mm

Hose

6шт.

7

87407248

HOSE,61.00 mm ID, 63.50 mm ID x 125.00 mm, SAE 20R4 CLASS D1

Connector, Lower

1шт.

8

86984443

FITTING

90, Inc. 37

1шт.

9

87304771

SPACER

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

11

87445127

TUBE,25.4 mm OD

Engine Coolant

1шт.

12

87445129

HOSE

Engine Coolant

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

14

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

45шт.

18

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

19

87445566

HOSE,6.40 mm ID x 1095.00 mm

Dearation Tank to Engine Vent

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

21

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

1шт.

22

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

2шт.

23

A170241

RADIATOR CAP

103 kpa

1шт.

24

87384580

TANK

Dearation

1шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

26

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

27

87362758

BRACKET

Mounting, Coolant Revocery Bottle

1шт.

28

L19029

CLAMP

Twist

1шт.

29

87530938

HOSE

Dearation Tank to Radiator, 1400 mm (55")

1шт.

30

435458A1

HOSE

DearationTank to Coolant Recovery Bottle

1шт.

31

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

32

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

33

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

34

87481454

BOTTLE

Coolant Recovery

1шт.

35

238903A1

FILLER CAP

Coolant Recovery Bottle

1шт.

36

87713484

HOSE,0.28" ID x 28.00"

Overflow, Coolant Recovery Bottle

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

38

87660725

BRACKET, SUPPORTING

Air Intake Tube

1шт.

39

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

6шт.

40

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

42

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
