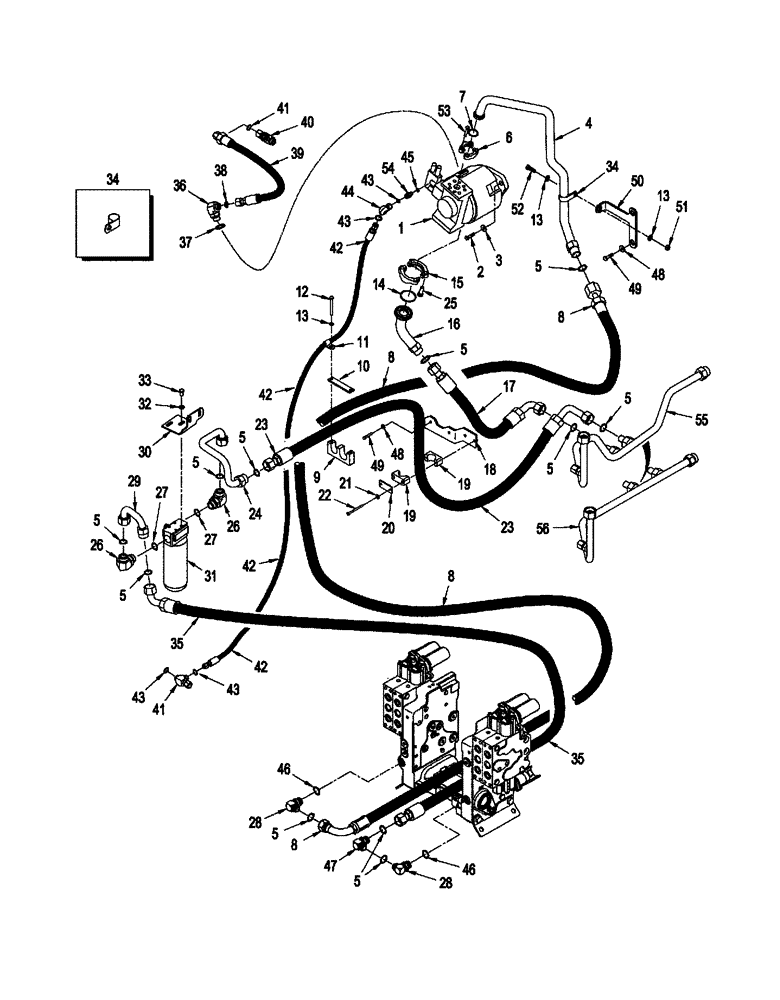

Запчасти Case IH STEIGER 485 (08-52) - HYDRAULICS - PARALLEL FLOW CIRCUITRY (08) - HYDRAULICS

1

407476A1

HYDRAULIC PUMP

Implement, See Figure: 08-45

1шт.

1

407476A1C

CORE-HYDRAULIC PUMP

1шт.

1

407476A1R

REMAN-HYD PUMP

1шт.

2

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

2шт.

With Manual Shift Transmission

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

With Power Shift Transmission

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

4

87576188

TUBE,24.5 mm OD

Pressure Pump

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

13шт.

6

A12306

FLANGE

Split, 1

2шт.

7

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

8

87381559

HOSE,25.4mm ID x 3323mm L

3323 mm (131")

1шт.

9

87578492

HOSE CLAMP

1шт.

10

414856A1

PLATE

Hose Clamp

1шт.

11

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

15

A14141

FLANGE

Split, 2

2шт.

16

414077A1

TUBE

1шт.

17

414196A1

HOSE,25.4mm ID x 825mm L

825 mm (32")

1шт.

18

433047A2

BRACKET

Mounting, Hose Clamp

1шт.

19

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

2шт.

20

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

1шт.

21

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

414464A1

HOSE

1626 mm (64")

1шт.

24

419661A1

TUBE

1шт.

25

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 5 & 27

2шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 5 & 46

2шт.

29

419655A1

TUBE

1шт.

30

87341623

BRACKET

Mounting, Parallel Flow Filter

1шт.

31

414219A1

FILTER

Parallel Flow, See Figure: 08-46

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

34

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

35

87381560

HOSE

2383 mm (94")

1шт.

36

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 37, 38

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

39

431461A1

HOSE ASSY.

737 mm (29")

1шт.

40

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Inc. 41

1шт.

41

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 43

1шт.

42

87572954

HOSE

3138 mm (123-1/2")

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

44

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 43

1шт.

45

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

46

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

47

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 5

1шт.

48

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

49

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

50

87576505

BRACKET

Tube Support

1шт.

51

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

52

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

53

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

54

1957867C1

FILTER SCREEN

1/4" orb x 3/8" fc sl, Inc. 43 & 45

1шт.

55

418816A2

TUBE

Pump Supply

1шт.

STX Wheel Tractor

1шт.

56

87311041

HYD TUBE

Pump Supply

2шт.

QUADTRAC Tractor

1шт.
