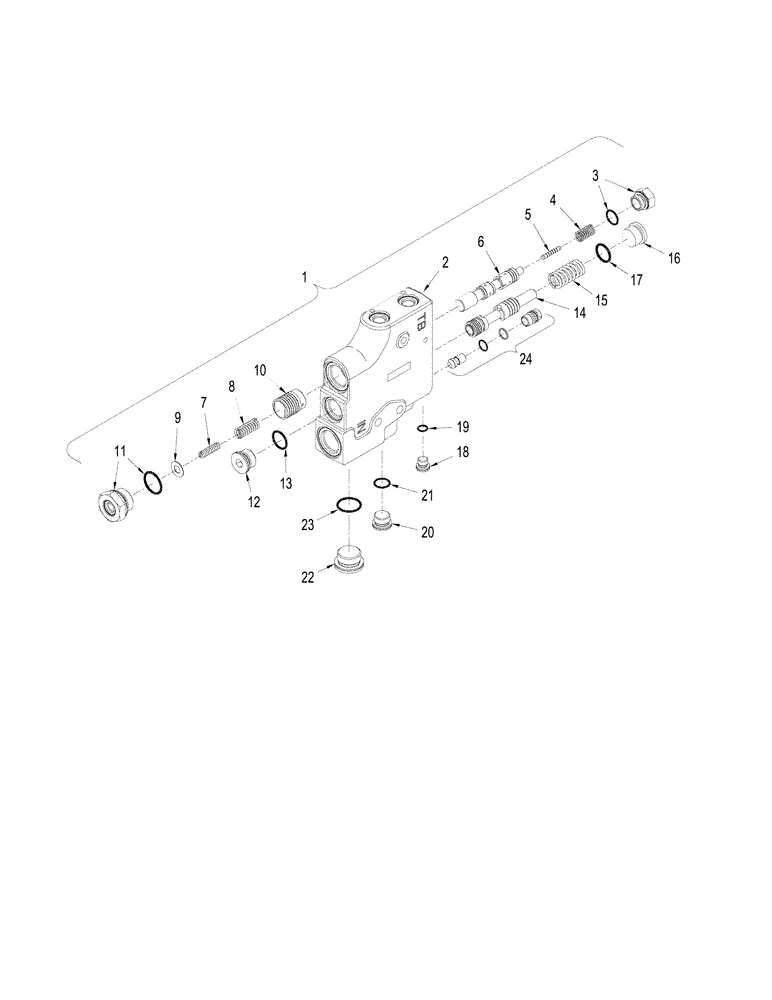

Запчасти Case IH STEIGER 485 (08-51) - VALVE - HYDRAULIC TRAILER BRAKE (08) - HYDRAULICS

1

87388358

VALVE SECTION

Trailer Brake, Inc. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

87324557

STOP PLUG

1шт.

4

87444752

BRAKE SPRING

Return

1шт.

5

86988723

SPOOL

Inner

1шт.

6

87324553

SPOOL

Trailer Brake

1шт.

7

87444751

BRAKE SPRING

Feathering Inner

1шт.

8

87444750

BRAKE SPRING

Feathering Outer

1шт.

9

NSS

NOT SOLD SEPARAT

Shim

1шт.

10

86988724

PISTON

Priority / Trailor Brake

1шт.

11

87454597

PLUG

1шт.

12

221580A1

PLUG,M27 x 2 ORB

Inc. 13

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Spool

1шт.

15

408447A1

COMPRESSION SPRING

1шт.

16

9841223

PLUG,1-1/16" - 12 ORB

Incl. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 19

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

221579A1

PLUG,M22 x 1.5 ORB

Incl. 21

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Inc. 23

1шт.

23

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

24

1542563C1

KIT

Logic

1шт.
