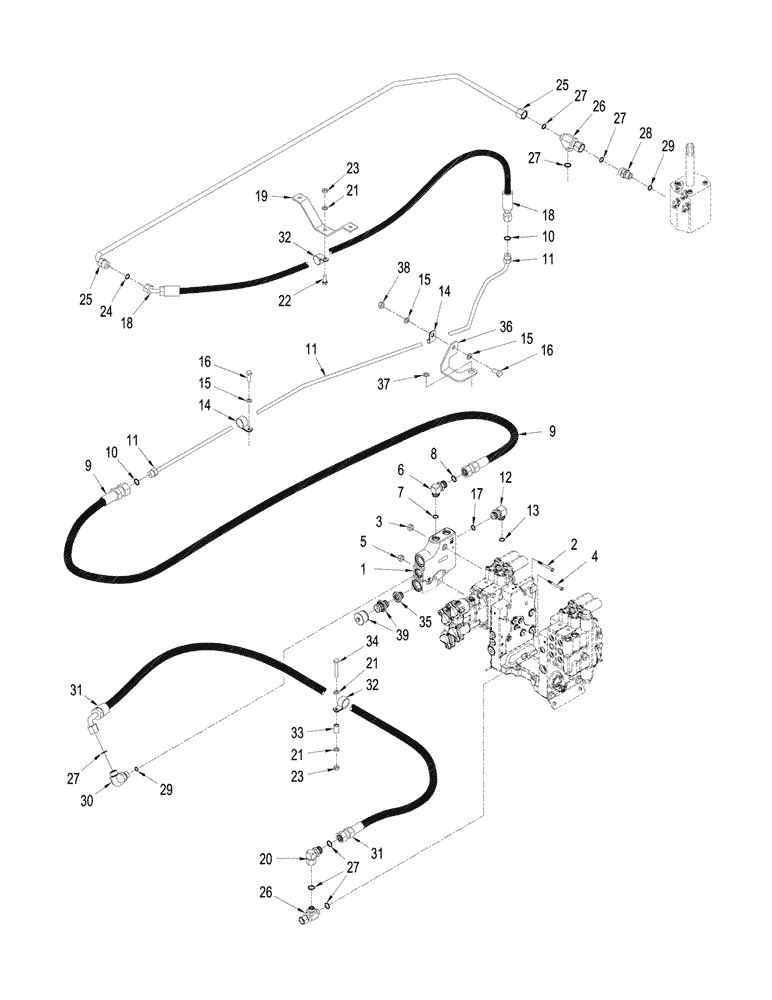

Запчасти Case IH STEIGER 485 (08-50) - TRAILER BRAKES - HYDRAULIC (08) - HYDRAULICS

1

87388358

VALVE SECTION

Trailer Brake / Priority. See Figure: 08-49

1шт.

2

87418098

STUD

Tie, Rod

1шт.

3

304951A1

NUT

1шт.

4

87430079

STUD

Tie

2шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

6

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

87346096

HOSE ASSY.

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

87387104

HYD TUBE,6.2 mm ID x 9.5 mm OD x 1942, 125 mm L

Trailer Brake RF

1шт.

QUADTRAC Tractor

1шт.

11

84145393

TUBE,9.50 mm OD x 1820, 125 mm L

Trailer Brake, RF, Not Illustrated

1шт.

Wheel Tractor

1шт.

12

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 13 & 17

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

3шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

87563359

HOSE ASSY.

1шт.

QUADTRAC Tractor

1шт.

18

87346094

HOSE ASSY.

1шт.

Wheel Tractor

1шт.

19

87345211

BRACKET

1шт.

QUADTRAC Tractor

1шт.

19

87384904

BRACKET

1шт.

Wheel Tractor

1шт.

20

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

22

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

87342347

HYD TUBE

1шт.

26

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 27

2шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

28

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 27 & 29

1шт.

29

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

30

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

31

87367884

HOSE ASSY.

1шт.

32

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

33

414937A1

SPACER

2шт.

34

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

35

87371306

COUPLING, QUICK, FEM

Quick Connect

1шт.

36

87387132

BRACKET

Trailer Brake

1шт.

QUADTRAC Tractor

1шт.

37

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

QUADTRAC Tractor

1шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

QUADTRAC Tractor

1шт.

39

737606R1

COUPLING, QUICK, FEM

1шт.
