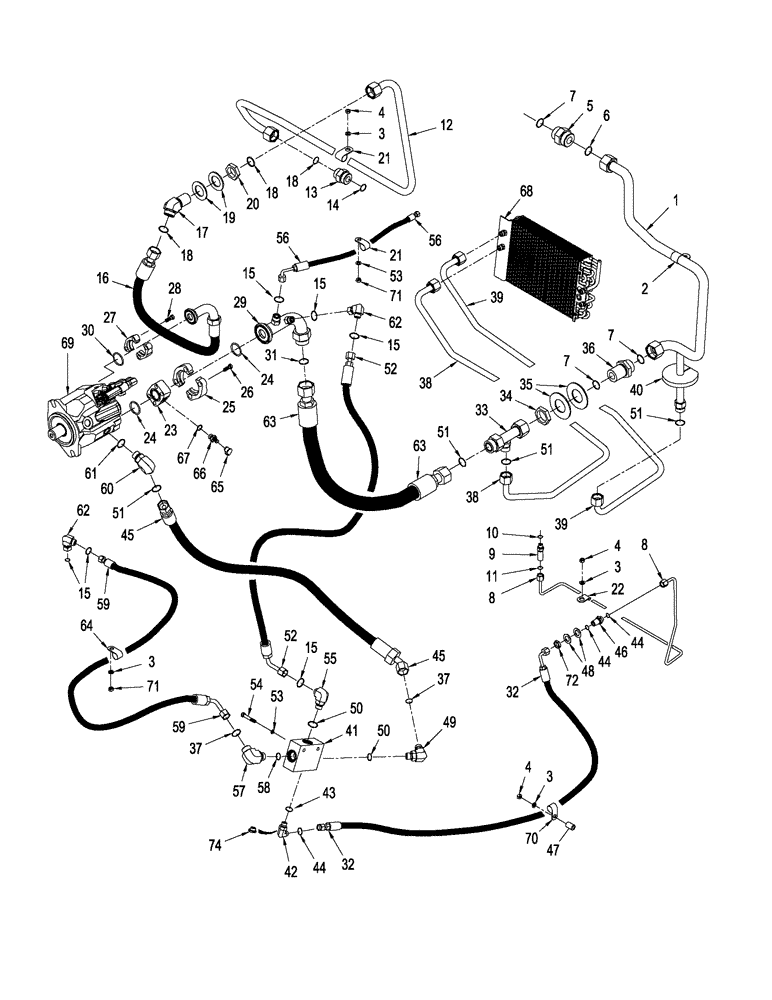

Запчасти Case IH STEIGER 485 (08-47) - HYDRAULICS - FAN DRIVE CIRCUITRY, STEIGER 485 (08) - HYDRAULICS

1

87399398

HYD TUBE,19.68 mm ID x 24.5 mm OD x 474, 425 mm L

Fan Return

1шт.

2

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

5

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 6 & 7

1шт.

6

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

8

87399400

HYD TUBE,4.57 mm ID x 6.35 mm OD x 493, 337 mm L

Case Drain, Serial Range: -Z8F110157

1шт.

9

87530057

FITTING

Inc. 10 & 11

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

87399396

HYD TUBE,14.23 mm ID x 19.05 mm OD x 610, 422 mm L

Pressure Supply

1шт.

13

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 14 & 15

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

16

87608034

HOSE ASSY.

1661 mm (66")

1шт.

16

87744634

HOSE ASSY.

1661 mm (66")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

17

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Inc. 18

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

431806A1

WASHER

2шт.

20

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

21

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

22

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

2шт.

23

87440383

VALVE BLOCK

1", Flange Port

1шт.

24

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

25

A12306

FLANGE

Clamp, Half-Split

2шт.

26

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

27

A14157

FLANGE

Clamp, Split, 1,50"

1шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

29

87560811

TUBE,25.654 mm ID x 31.75 mm OD x 150, 100 mm L

Fan Pump

1шт.

30

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

87608035

HOSE ASSY.

1474 mm (58-3/4"), Serial Range: -Z8F110157

1шт.

33

433891A1

TUBE

1шт.

34

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

35

431802A1

WASHER,40mm ID x 80mm OD x 3.8mm Thk

2шт.

36

434004A1

VALVE, CHECK

Blk hd, Inc. 7

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

87693192

HYD TUBE,15.88 mm OD x 962, 182 mm L

Supply, Oil Cooler

1шт.

39

87693190

HYD TUBE,15.88 mm OD x 533, 153 mm L

Return, Oil Cooler

1шт.

40

87444087

SEAL

Shroud

1шт.

41

87408680

BLOCK

Manifold

1шт.

42

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc. 43 & 44, Serial Range: -Z8F110157

1шт.

43

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

44

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

45

87372139

HOSE

406 mm (16")

1шт.

45

87744630

HOSE ASSY.

406 mm (16")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

46

701-108

UNION,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Inc. 44, Serial Range: -Z8F110157

1шт.

47

87659829

SPACER

1шт.

48

87307708

WASHER

, Serial Range: -Z8F110157

2шт.

49

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 37 & 50

1шт.

50

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

51

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

52

87372135

HOSE

487 mm (19")

1шт.

52

87744631

HOSE ASSY.

487 mm (19")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

54

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

55

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 15 & 50

1шт.

56

87372142

HOSE

2438 mm (97")

1шт.

56

87744632

HOSE ASSY.

2438 mm (97")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

57

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Inc. 37 & 58

1шт.

58

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

59

87344506

HOSE

2235 mm (88")

1шт.

60

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 51 & 61

1шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

62

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 15

2шт.

63

87375217

HOSE

487 mm (19")

1шт.

63

87744633

HOSE ASSY.

487 mm (19")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

64

9603626

CLAMP

2шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 66 - 67

1шт.

65

H434163

DUST CAP

1шт.

66

NSS

NOT SOLD SEPARAT

Fitting, Inc. 67

1шт.

67

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

68

87434395

CONDENSER

Hydraulic Fan

1шт.

69

87658055

PUMP

Hydraulic, CCW Variable Displacement, Steiger 485, See Figure: 08-49

1шт.

87658055R

REMAN-HYD PUMP

STEIGER 485 (8/07-)

1шт.

87658055C

CORE-HYDRAULIC PUMP

Return Number

1шт.

69

87434402

HYDRAULIC PUMP,45 CC

45 CC Piston, Steiger 535, See Figure: 08-49

1шт.

70

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

71

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

72

701-1254

BHD LOCK NUT,9/16" - 18

, Serial Range: -Z8F110157

1шт.

73

811-10080

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

1шт.

74

220064A1

PLUG,M14 x 1.5, ORB

Inc. 43, Start Serial: Z8F110157

1шт.
