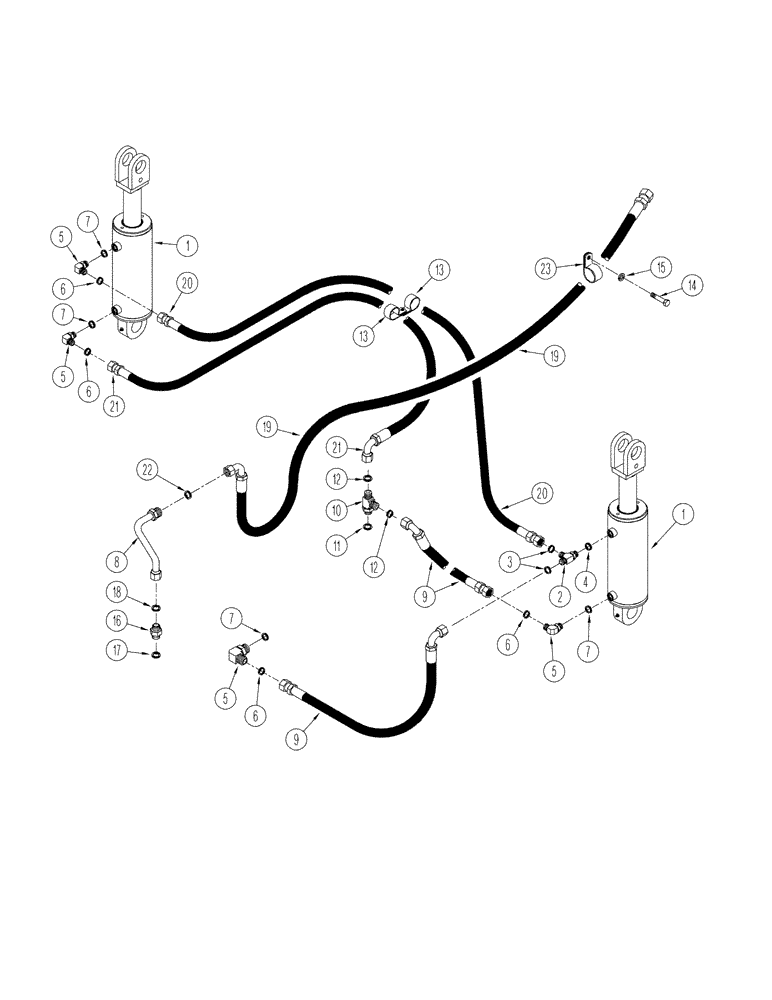

Запчасти Case IH STEIGER 485 (08-40) - THREE POINT HITCH HYDRAULICS - ELECTRONIC CONTROLLED HITCH SYSTEM (08) - HYDRAULICS

1

403206A1

CYLINDER ASSY.

TPH Lift, See Figure: 08-41, Serial Range: -Z8F111740

2шт.

1

87304298

CYLINDER

TPH Lift, See Figure: 08-41 (01), Start Serial: Z8F111740

2шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 6, 7

4шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

8

403207A1

TUBE

1шт.

9

360496A1

HOSE ASSY.

505 mm (20 in), Cylinder Supply

2шт.

10

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 11, 12

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

4шт.

14

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

87427995

HOSE ASSY.

3540 mm (139 in), Return

1шт.

20

394732A1

HOSE ASSY.

1410 mm (55-1/2 in), Return

1шт.

21

394733A1

HOSE ASSY.

1397 mm (55 in), Pressure Line

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.
