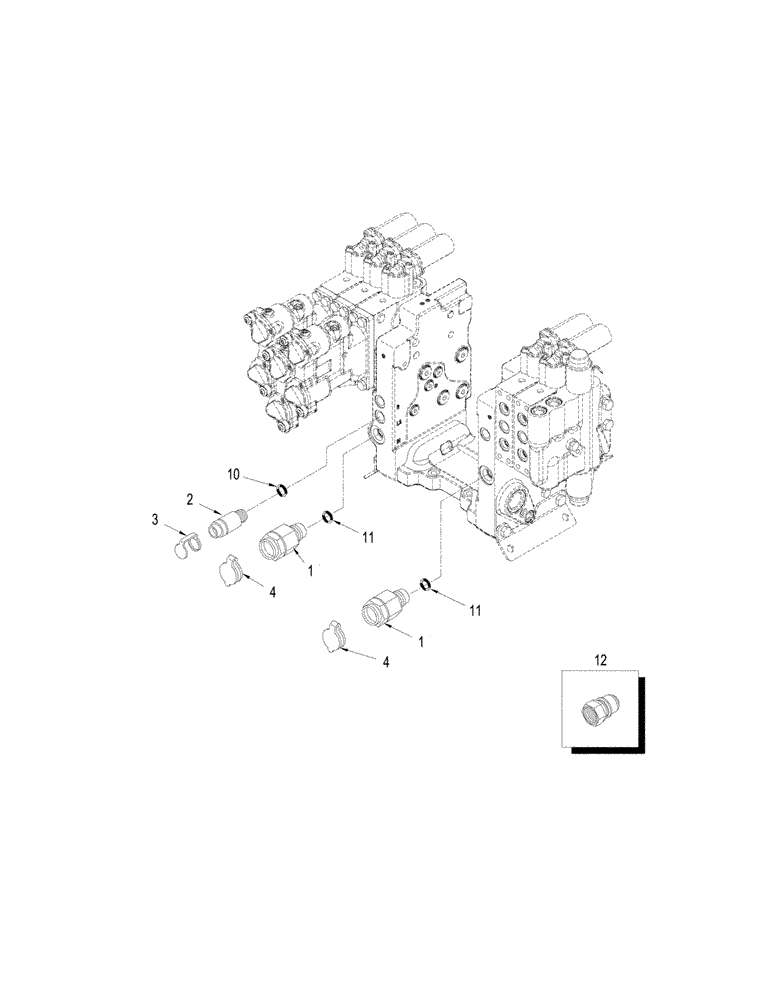

Запчасти Case IH STEIGER 485 (08-38) - COUPLERS - POWER BEYOND (08) - HYDRAULICS

1

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

Hydr., 3/4", Auxiliary

2шт.

1

445015A1

SEAL KIT

For Ref 1

1шт.

2

294603A1

BODY

Hydr., 1/4", Auxiliary

1шт.

3

334218A1

CAP

Dust

1шт.

4

334216A1

CAP

Dust

2шт.

5

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

Hydr., 3/4", Inc. 10, Not Illustrated

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Illustrated

2шт.

7

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

Hydr., 1/4", Inc. 8, Not Illustrated

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

2шт.

9

385358A1

QUICK MALE COUPLING,3/8"

Hydr., 3/8", Case Drain, Not Illustrated

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

12

87335428

COUPLING

Implement Coupler, 1/2"-14 nptf

1шт.

12

87335430

COUPLING

Implement Coupler, 3/4"-16 orb

1шт.

12

87335431

FITTING

Implement Coupler, 7/8"-14 orb

1шт.

719517003

KIT

Motor Return / Power Beyond, Inc. 1 - 9

1шт.
