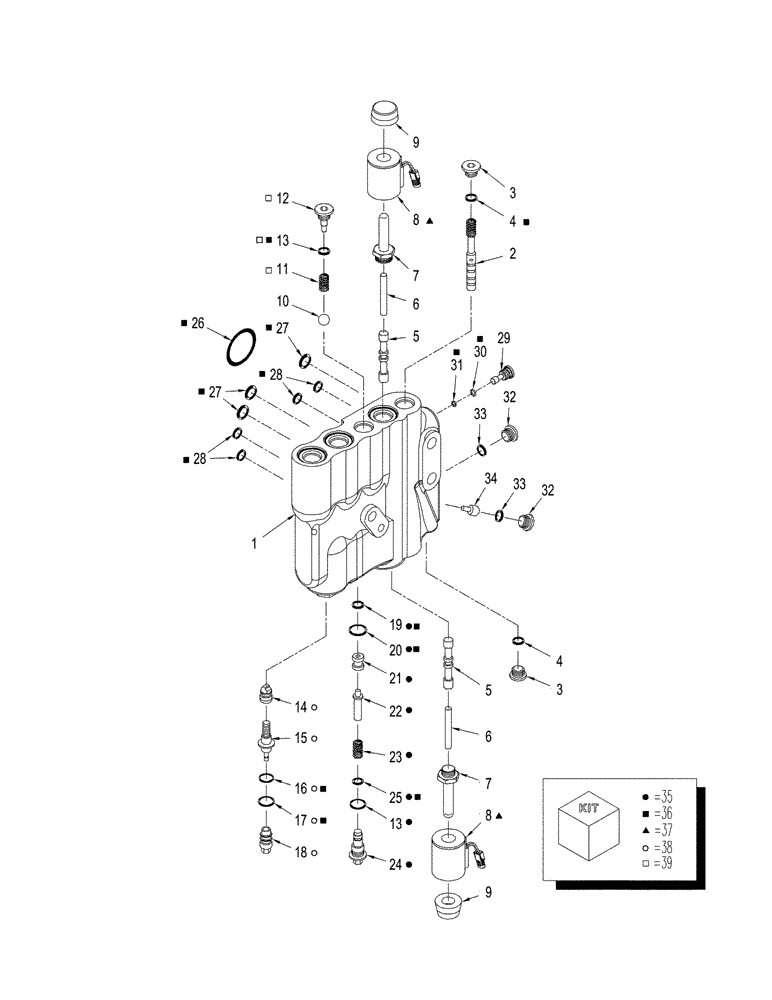

Запчасти Case IH STEIGER 485 (08-36) - HITCH VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
84164343
VALVE
Inc. 1 - 39; Move tie bolt to location that matches hitch valve.
1шт.
1
NSS
NOT SOLD SEPARAT
Housing
1шт.
2
NSS
NOT SOLD SEPARAT
Spool
1шт.
3
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl 4
2шт.
4
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
5
188104A1
SPOOL
Pilot
2шт.
6
188116A1
PIN,3.25mm OD x 39.93mm L
2шт.
7
188117A1
CARTRIDGE,72.25mm OAL
Override
2шт.
8
188105A1
SOLENOID
Coil
2шт.
9
188106A1
NUT
Retaining
2шт.
10
511-10200
BALL,20mm Dia
1шт.
11
NSS
NOT SOLD SEPARAT
Spring, Compression
1шт.
12
NSS
NOT SOLD SEPARAT
Plug
1шт.
13
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
14
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
15
NSS
NOT SOLD SEPARAT
Stem, Servo
1шт.
16
238-5022
O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro
1шт.
17
238-5023
O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro
1шт.
18
NSS
NOT SOLD SEPARAT
Plug, Meter Out
1шт.
19
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
20
373767A1
RING,Split, 83.06mm ID
1шт.
21
NSS
NOT SOLD SEPARAT
Seat
1шт.
22
NSS
NOT SOLD SEPARAT
Poppet Valve
1шт.
23
NSS
NOT SOLD SEPARAT
Spring, Compression
1шт.
24
NSS
NOT SOLD SEPARAT
Plug
1шт.
26
238-5142
O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro
1шт.
27
238-6117
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
3шт.
29
373761A1
PLUG
1шт.
30
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
31
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
2шт.
32
86529630
PLUG,Hex Soc, 3/8"-24 ORB
2шт.
33
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
2шт.
34
373758A1
VALVE
Load Sense
1шт.
35
373756A1
KIT
Relief
1шт.
36
373757A1
SEAL KIT
Seal
1шт.
37
243254A1
KIT
Solenoid
2шт.
38
87430152
SERVICE KIT
Meterout
1шт.
39
87373591
KIT
Valve Load Drop Check
1шт.
Выбрано товаров: 40
