Запчасти Case IH STEIGER 485 (08-35) - MAIN AND AUXILIARY VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS

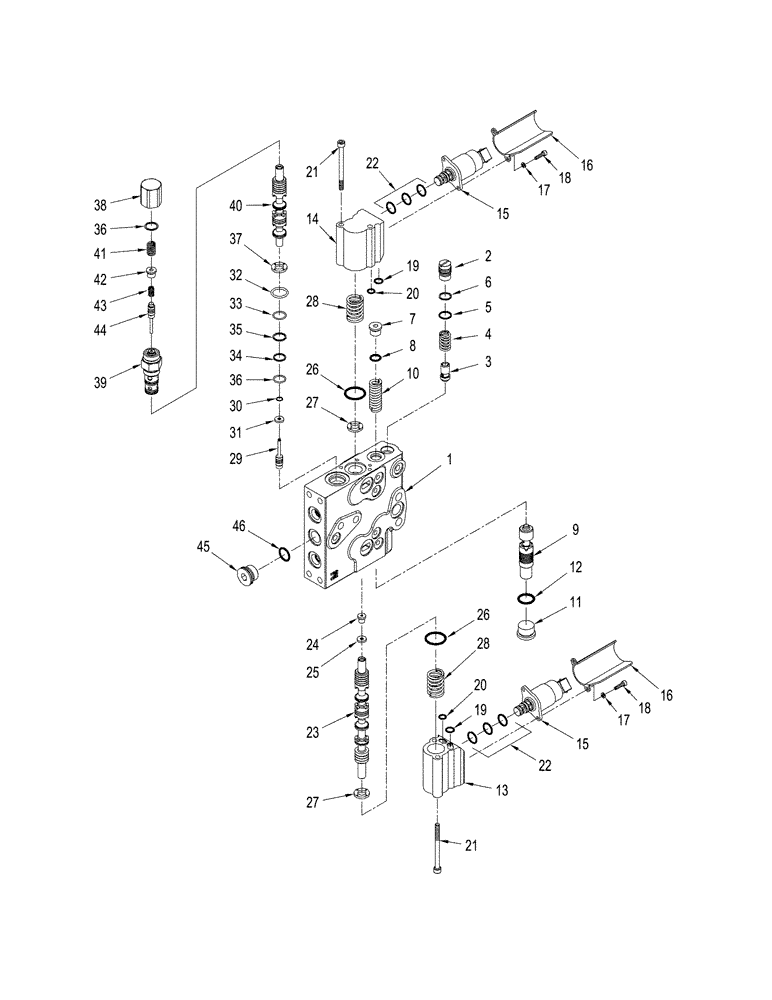

Схема запчастей Case IH STEIGER 485 - (08-35) - MAIN AND AUXILIARY VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS
44
43
10
25
15
1
15
18
26
9
30
14
21
45
26
38
33
13
7
12
8
40
4
21
19
22
5
2
17
41
28
36
39
32
34
36
42
19
29
27
23
6
16
20
3
24
31
35
22
28
20
16
11
37
46
17
18
27

Артикул

Название

Примечание

Количество

292295A3

VALVE

Main Auxiliary, Inc. 1 - 46

1шт.

292295A3R

REMAN-HYD VALVE

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 all (8/07-)

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

393972A3

VALVE

Auxiliary, Left-Hand, Inc. 1 - 46

1шт.

393972A3R

REMAN-HYD VALVE

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 all (8/07-)

1шт.

393972A3C

CORE-VALVE HYD

Return Number

1шт.

393973A3

VALVE

Auxiliary, Right-Hand, Inc. 1 - 46

1шт.

393973A3R

REMAN-HYD VALVE

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 ALL ASN Z7F108001 (8/07-)

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1542563C1

KIT

Logic, Inc. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

292321A2

SPOOL

1шт.

10

301973A1

SPRING

1шт.

11

86625138

PLUG,7/18" - 14

Inc. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

336278A3

HYD VALVE SECTION

EH Pilot Block, Inc. 13, 15 - 22

1шт.

392403A2

PILOT VALVE

Block, EH, Inc. 14 - 22

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Valve, Lower

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Valve, Upper

1шт.

15

278506A1

SOLENOID VALVE

Proprotional

1шт.

16

353830A1

GUARD

1шт.

17

892-11004

LOCK WASHER,M4

2шт.

18

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

2шт.

19

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

21

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

2шт.

22

372228A1

SEAL

O-Ring Kit

1шт.

23

87410063

SPOOL

1шт.

24

86632547

PLUG,Hex, 5/16"-24 ORB

Inc. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

27

436518A1

WASHER,11.45mm ID x 22.5mm OD x 3mm Thk

Centering

2шт.

28

87706278

COMPRESSION SPRING

Lower, Outer

2шт.

1957907C1

PISTON ASSY

Load Check, Inc. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

Piston

1шт.

30

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

31

NSS

NOT SOLD SEPARAT

Washer

1шт.

278550A2

CHECK VALVE

Load, Inc. 32 - 44

1шт.

278550A2R

REMAN-HYD VALVE

STEIGER 385,435,485,535 ALL (8/07-)

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

34

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

35

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

37

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

38

NSS

NOT SOLD SEPARAT

Cap

1шт.

39

NSS

NOT SOLD SEPARAT

Poppet

1шт.

40

NSS

NOT SOLD SEPARAT

Body, Poppet

1шт.

41

NSS

NOT SOLD SEPARAT

Spring

1шт.

42

1957964C1

RETAINER

Spring

1шт.

43

NSS

NOT SOLD SEPARAT

Spring

1шт.

44

NSS

NOT SOLD SEPARAT

Poppet

1шт.

45

86632547

PLUG,Hex, 5/16"-24 ORB

Inc. 46

1шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 62
