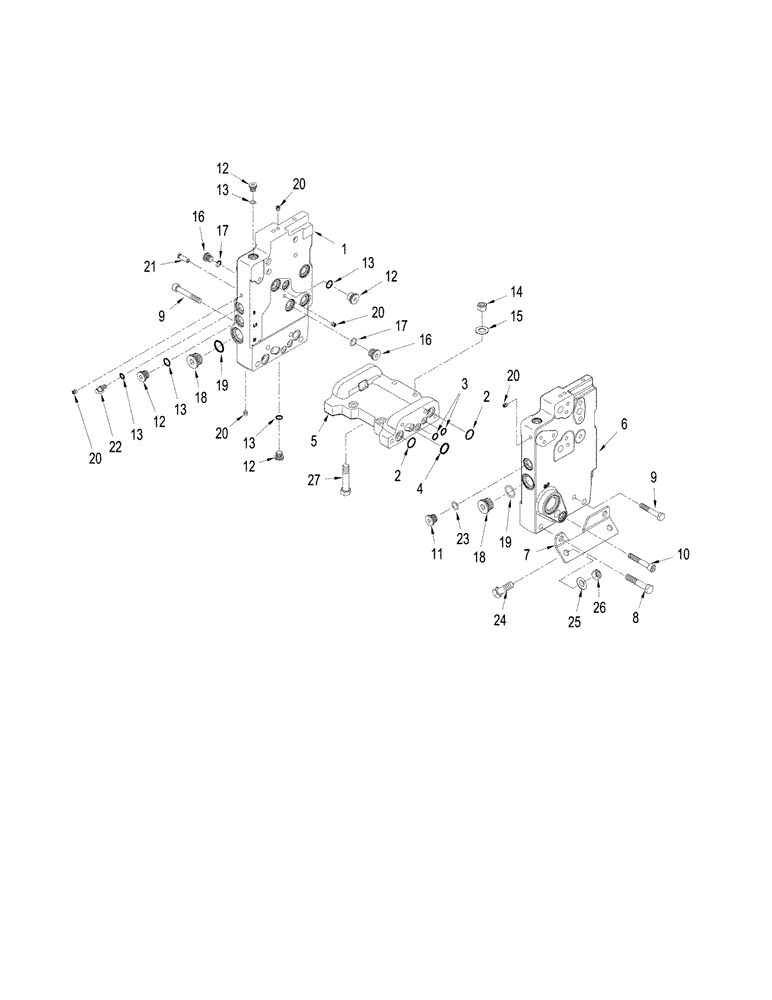

Запчасти Case IH STEIGER 485 (08-32) - MANIFOLD VALVE ASSEMBLY (08) - HYDRAULICS

87578889

VALVE SECTION

Manifold, Inc. 1 - 13, 16, 20 & 21

1шт.

1

NSS

NOT SOLD SEPARAT

Valve, Manifold, Intake, Left-Hand

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

4шт.

4

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Manifold, Center Section

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Manifold, Outlet, Right-Hand

1шт.

7

338681A1

BRACKET

Mounting, Manifold

2шт.

8

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

9

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

10

863-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

2шт.

11

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

Inc. 23

1шт.

12

86598046

PLUG,M18 x 1.5 ORB

Inc. 13

10шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

10шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

16

86598044

PLUG,Hex, M14 x 1.5 ORB

Inc. 17

7шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

7шт.

18

221580A1

PLUG,M27 x 2 ORB

Inc. 19

2шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

20

353828A1

PLUG

13шт.

21

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

22

358968A1

FITTING

M18 orb x 1,5, Diagnostic, If Used, Inc. 13

1шт.

23

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

24

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

25

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

27

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.
