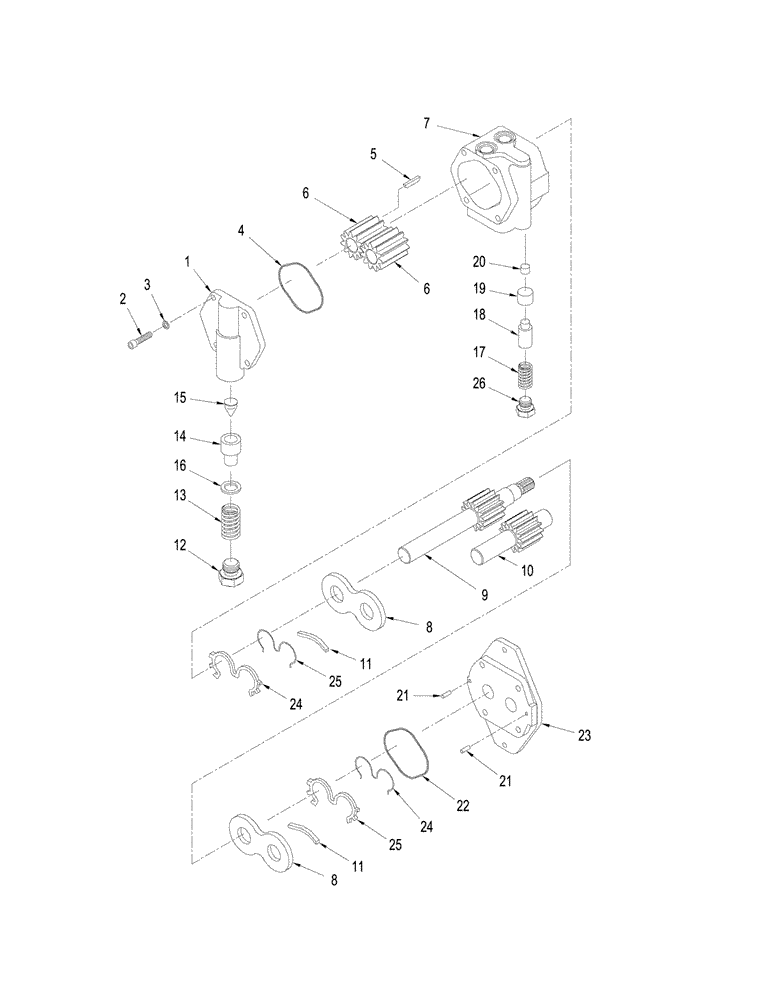

Запчасти Case IH STEIGER 485 (08-29) - GEAR PUMP ASSEMBLY (08) - HYDRAULICS

87428412

HYDRAULIC PUMP

Gear, Inc. 1 - 26

1шт.

432244A3R

REMAN-HYD PUMP

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 all (8/07-); Reman for New P/N 87428412

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Rear

1шт.

2

NSS

NOT SOLD SEPARAT

Screw

8шт.

3

NSS

NOT SOLD SEPARAT

Washer

8шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Dowel

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

2шт.

7

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Thrust

2шт.

9

NSS

NOT SOLD SEPARAT

Shaft, Gear

1шт.

10

NSS

NOT SOLD SEPARAT

Shaft, Gear

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

2шт.

87427777

ZERO DETANT KIT

VALVE KIT Gear Pump, 153 psi, Inc. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

15

NSS

NOT SOLD SEPARAT

Seat

1шт.

16

NSS

NOT SOLD SEPARAT

Shim

1шт.

245847A1

PACKAGE

Pressure Relief, Gear Pump, 550 psi, Inc. 17 - 20, 26

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Plunger

1шт.

19

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

20

NSS

NOT SOLD SEPARAT

Seat

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

NSS

NOT SOLD SEPARAT

Housing, Front

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Channel

2шт.

25

NSS

NOT SOLD SEPARAT

Seal, Backup

2шт.

26

NSS

NOT SOLD SEPARAT

Plug

1шт.

334450A1

SEAL KIT

Repair, Inc. 11, 20, 22, 24 & 25

1шт.
