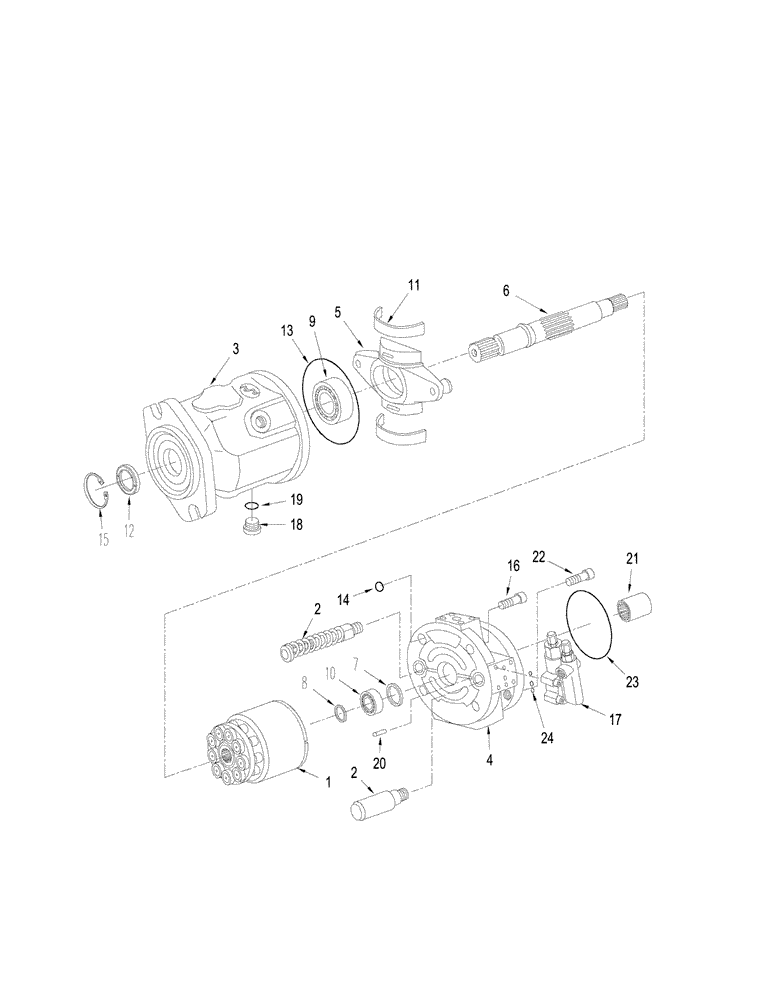

Запчасти Case IH STEIGER 485 (08-24) - STANDARD HYDRAULICS - PISTON PUMP ASSEMBLY (08) - HYDRAULICS

87308197

PUMP

71 cc, Inc. 1 - 23

1шт.

87308197R

REMAN-HYD PUMP,71 CC

Remanufactured Hydraulic Pump

1шт.

87308197C

CORE-HYDRAULIC PUMP

Return number

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Piston Assy, Control

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Block

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

11

NSS

NOT SOLD SEPARAT

Support

2шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

15

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

16

NSS

NOT SOLD SEPARAT

Screw

4шт.

17

87308198

PUMP

Compensator

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Pin

1шт.

21

NSS

NOT SOLD SEPARAT

Coupling

1шт.

22

NSS

NOT SOLD SEPARAT

Screw

2шт.

17

87308198R

REMAN-HYD VALVE

Remanufactured Hydraulic Pump

1шт.

17

87308198C

CORE-VALVE HYD

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Pin

1шт.

21

NSS

NOT SOLD SEPARAT

Coupling

1шт.

22

NSS

NOT SOLD SEPARAT

Screw

2шт.

23

436514A1

O-RING

1шт.

24

8604965

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.

388293A1

SEAL KIT

Inc. 12 - 14, 19, 23

1шт.
