Запчасти Case IH STEIGER 485 (08-23) - STANDARD HYDRAULICS - PUMP MOUNTING (08) - HYDRAULICS

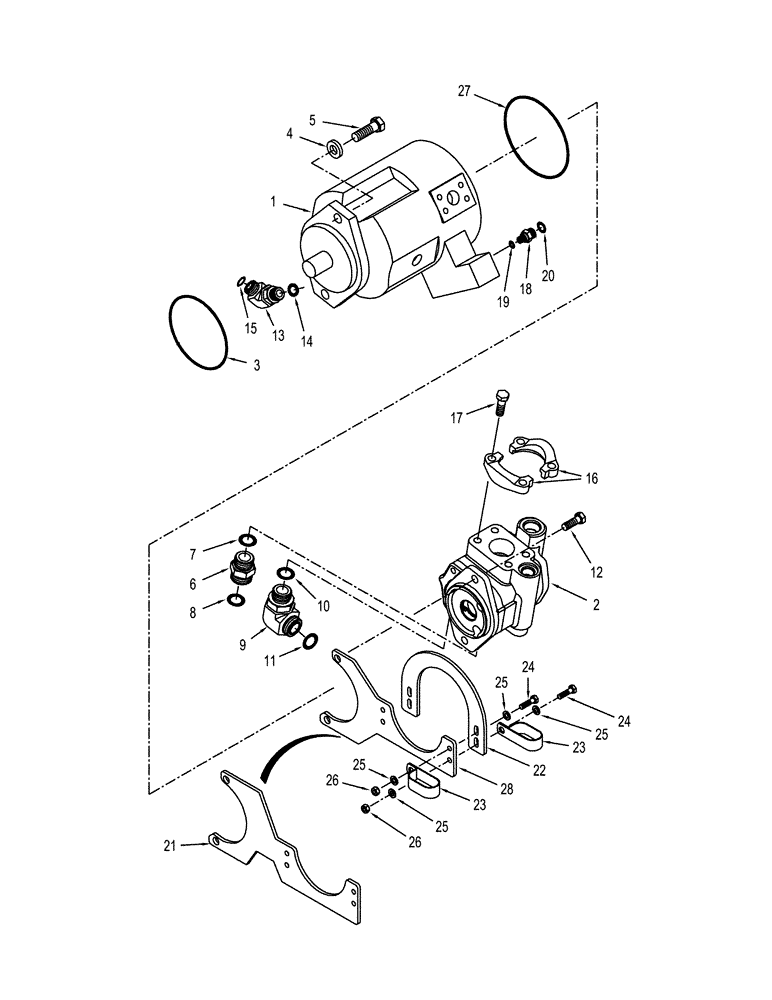

Схема запчастей Case IH STEIGER 485 - (08-23) - STANDARD HYDRAULICS - PUMP MOUNTING (08) - HYDRAULICS
21
25
13
16
20
23
1
26
24
26
25
24
27
23
11
5
7
2
28
19
10
15
25
4
8
25
18
14
9
3
22
12
17
6

Артикул

Название

Примечание

Количество

1

87308197

PUMP

Piston, 71 cc, See Figure: 08-24

1шт.

1

87308197R

REMAN-HYD PUMP,71 CC

Remanufactured Hydraulic Pump

1шт.

1

87308197C

CORE-HYDRAULIC PUMP

Return number

1шт.

2

87428412

HYDRAULIC PUMP

Gear, 100 cc, See Figure: 08-29

1шт.

432244A3R

REMAN-HYD PUMP

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 all (8/07-); Reman for New P/N 87428412

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

4

496-81022

WASHER

11/16" x 1-1/4" x 1/4"

2шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

6

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 7, 8

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

9

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 10, 11

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 14, 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

A14141

FLANGE

4шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

18

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

Inc. 19, 20

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

87419158

BRACKET

Mounting, Tandem Pump

1шт.

With Manual Shift Transmission

1шт.

22

87419159

PLATE

1шт.

23

L111928

CLAMP

2шт.

24

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

27

436514A1

O-RING

1шт.

28

87419460

BRACKET

Mounting, Tandem Pump

1шт.

With Power Shift Transmission

1шт.

Выбрано товаров: 34
