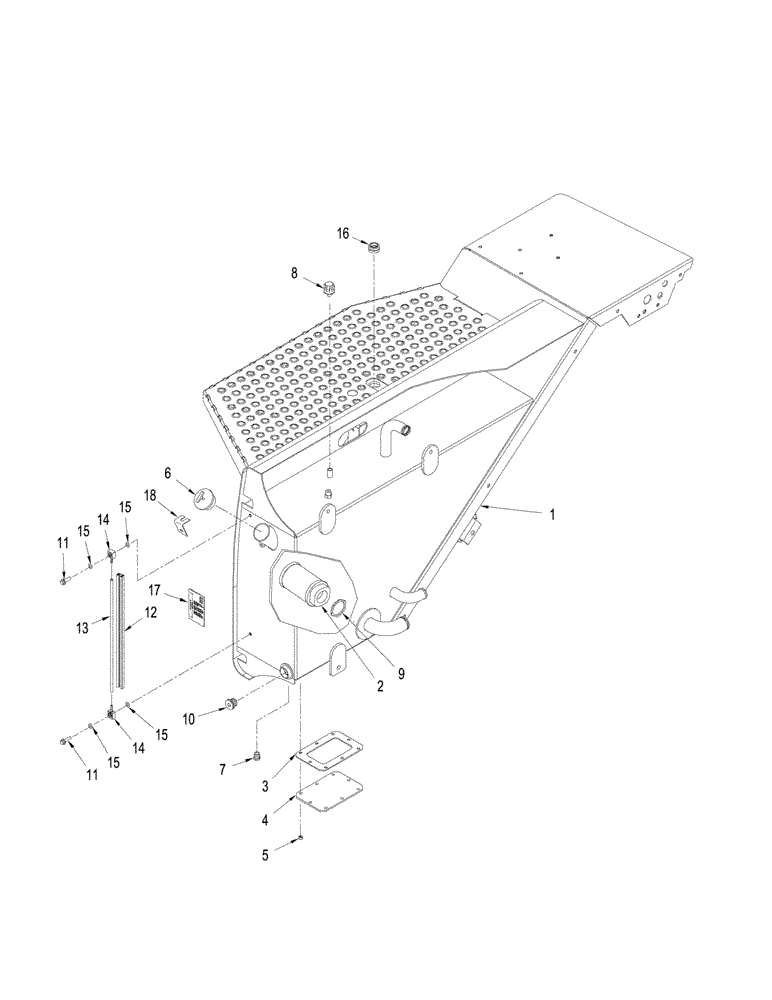

Запчасти Case IH STEIGER 485 (08-20) - HYDRAULIC TANK, QUADTRAC TRACTOR (08) - HYDRAULICS

1

87647705

TANK

Hydraulic, w/ Front LH Fender, Serial Range: -Z8F112520

1шт.

1

84162229

TANK

Hydraulic, w/ Front LH Fender, Start Serial: Z8F112520

1шт.

2

87408715

FILTER STRAINER

1шт.

3

435031A1

GASKET

Hydraulic Access Cover

1шт.

4

435030A1

COVER

Hydraulic

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

6

325737A1

CAP

Oil Filler

1шт.

7

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

8

1971726C1

BREATHER,1/4" - 18

1шт.

9

435032A1

LOCK NUT

1шт.

10

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

11

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

12

349869A1

CHANNEL

Sight Guage

1шт.

13

355179A1

HOSE

Sight Gauge

1шт.

14

352767A1

FITTING

2шт.

15

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

16

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Self Aligning

1шт.

17

434856A1

DECAL

Hydraulic Oil Level

1шт.

18

87646822

BRACKET

Retainer, Fill Cap Lock

1шт.
