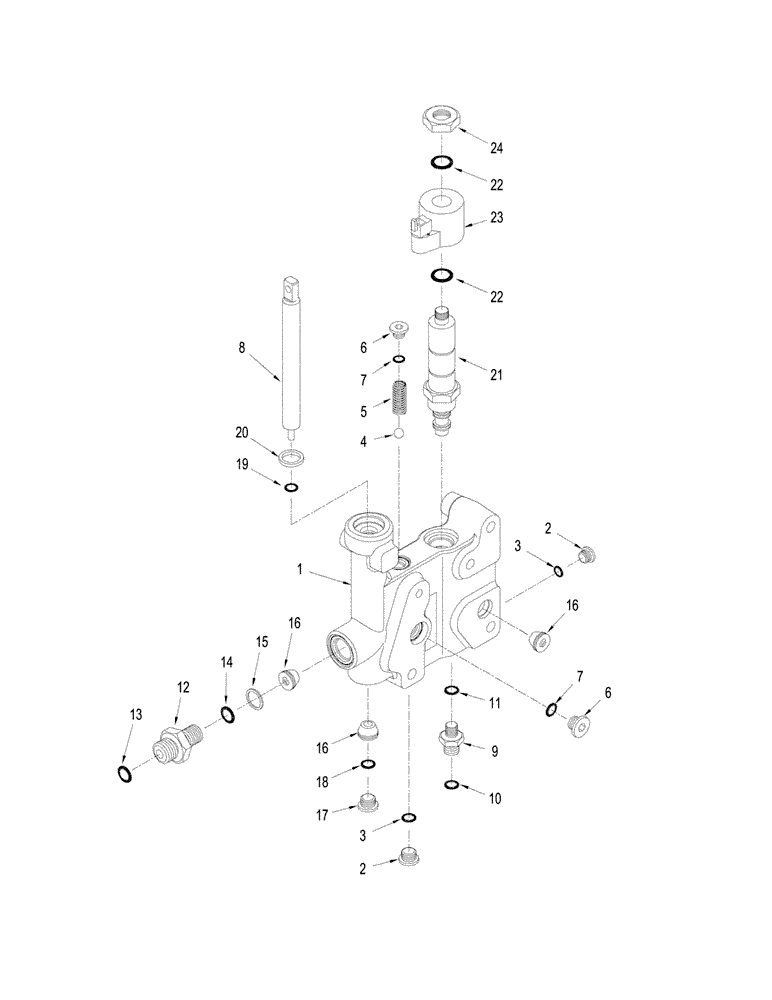

Запчасти Case IH STEIGER 485 (08-17) - TOW BLOCK VALVE ASSEMBLY (08) - HYDRAULICS

87679712

VALVE

Tow Block, Inc. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

86598044

PLUG,Hex, M14 x 1.5 ORB

Inc. 3

2шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

4

511-1060

BALL,6mm Dia

1шт.

5

352025A1

SPRING

Brake

1шт.

6

86598043

PLUG,M12 x 1.5 ORB

Inc. 7

2шт.

7

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

8

326300A1

SPOOL

Manual Pump

1шт.

9

282839A1

PLUG,8mm OD x 8.5mm L

Inc. 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Inc. 13, 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

1шт.

16

1994615C2

VALVE, CHECK

3шт.

17

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

Inc. 18

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

20

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

Oil Sensing

1шт.

87675608

SOLENOID

Inc. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

22

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Coil

1шт.

24

252462A2

NUT

1шт.
