Запчасти Case IH STEIGER 485 (08-11) - 450 / 500 SERIES AXLE HYDRAULICS - COOLING CIRCUIT, WHEEL TRACTOR (08) - HYDRAULICS

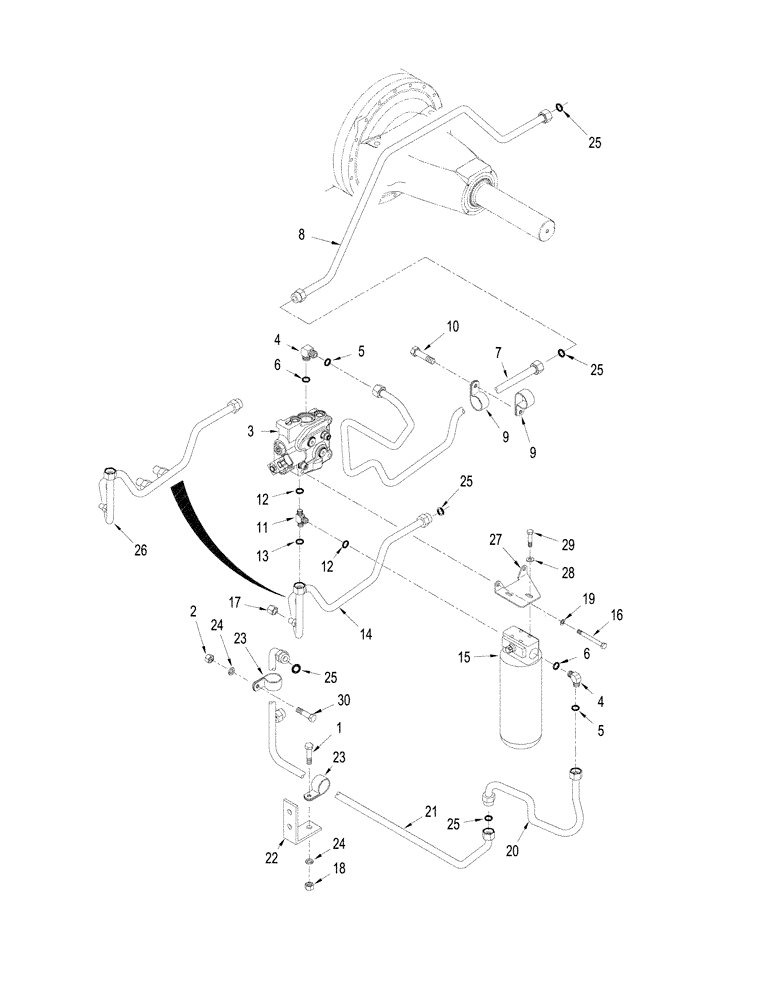

Схема запчастей Case IH STEIGER 485 - (08-11) - 450 / 500 SERIES AXLE HYDRAULICS - COOLING CIRCUIT, WHEEL TRACTOR (08) - HYDRAULICS
23
23
10
2
19
4
9
9
30
11
6
25
20
25
21
25
1
29
16
8
14
17
24
4
22
24
15
13
26
25
25
18
28
3
7
6
5
12
12
5

Артикул

Название

Примечание

Количество

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

3

411104A2

VALVE

Regulator, See Figure: 08-15

1шт.

4

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18, 19

2шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

7

418818A1

TUBE

1шт.

8

87439123

TUBE,22.1 mm ID x 25.4 mm OD

1шт.

9

R15257

CLAMP

2шт.

10

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

11

328232A1

TEE

Inc. 12 & 13

1шт.

12

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

14

87310970

HYD TUBE

Pump Supply

1шт.

Used without Twin Flow Hydraulic Option

1шт.

15

86991559

FILTER ASSY

Main Hydraulic (Below Battery), See Figure: 08-06

1шт.

16

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

17

701-906

CAP,1" - 14

1шт.

Used without Electronic TPH

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

20

418820A1

TUBE

1шт.

21

416708A1

TUBE

1шт.

22

451507A1

BRACKET

2шт.

23

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

26

418816A2

TUBE

Pump Supply

1шт.

Used with Twin Flow Hydraulic Application

1шт.

27

413322A1

BRACKET

Mounting, Main Hydraulic Filter

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

30

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 33
