Запчасти Case IH STEIGER 485 (08-09) - 500 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, WHEEL TRACTOR (08) - HYDRAULICS

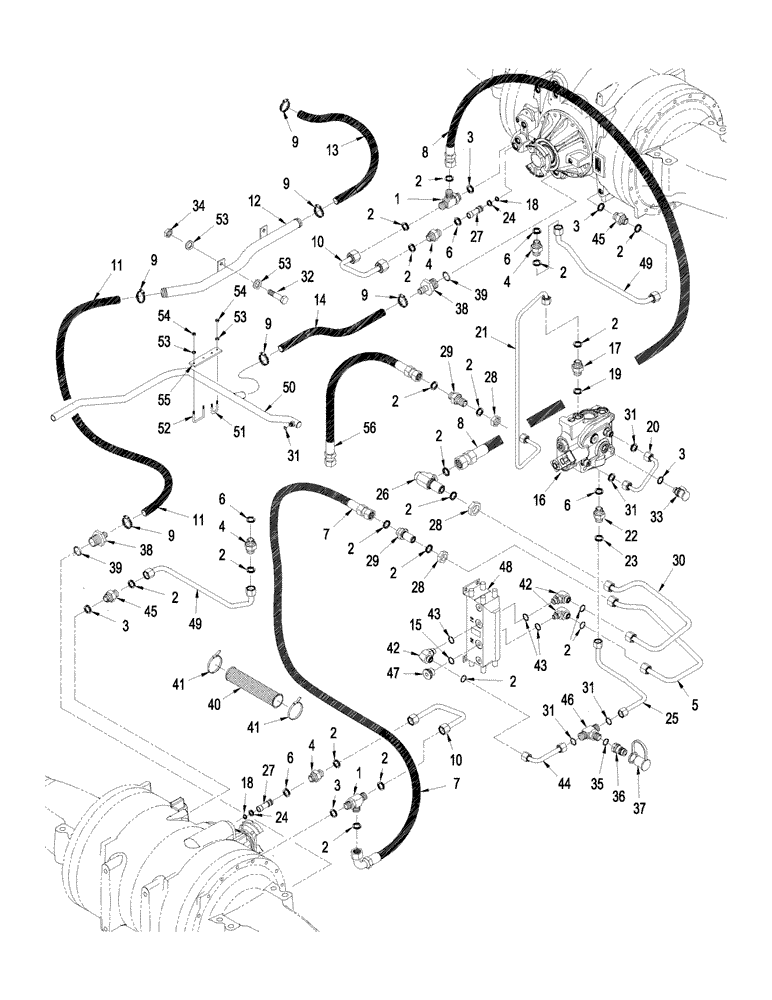

Схема запчастей Case IH STEIGER 485 - (08-09) - 500 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, WHEEL TRACTOR (08) - HYDRAULICS
50
19
25
13
30
2
2
33
9
10
26
1
42
39
2
49
6
2
48
20
2
9
11
27
9
53
34
42
39
15
2
3
8
14
12
24
27
2
6
4
45
11
17
6
52
29
43
6
55
3
9
2
28
38
2
31
31
3
2
3
35
9
23
2
46
43
2
2
2
53
10
9
28
24
2
41
6
3
51
2
49
22
31
54
7
2
8
29
54
7
4
56
18
28
31
36
18
53
38
37
41
16
4
1
2
2
53
32
45
5
31
40
4
47
21
44

Артикул

Название

Примечание

Количество

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

15шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 6

4шт.

5

449815A2

TUBE

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

7

353607A3

HOSE ASSY.

2165 mm (85 in)

1шт.

8

87413874

HOSE ASSY.

2483 mm (97-3/4 in)

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

451013A1

TUBE

Jumper

2шт.

11

353649A1

HOSE,1.00" ID x 56.00"

1346 mm (53 in), Cut From : 31-2755

1шт.

12

87376395

HYD TUBE,22.1 mm ID x 25.40 mm OD x 521, 128 mm L

1шт.

13

87390647

HOSE

Rear axle to Hydraulic Tank

1шт.

14

395933A1

HOSE,1.00" ID x 15.00"

Cut from S118383

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

87672094

VALVE

Regulator, See Figure: 08-14

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 2, 19

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

Jumper

1шт.

21

449800A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

25

87307521

TUBE,9.40 mm ID x 12.70 mm OD

1шт.

26

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 2

1шт.

27

87400028

ORIFICE

Pinnion Cover

2шт.

28

701-903

NUT,13/16" - 16

3шт.

29

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

30

449813A2

TUBE

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

33

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 3

1шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

392690A1

COUPLING

Diagnostic

1шт.

37

399032A1

CAP

Dust

1шт.

38

390348A1

STEM

M33 orb x barb, Axle Drain, Inc. 39

2шт.

39

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

40

334783A1

SLEEVE

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

42

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Inc. 43, 2

4шт.

44

87307544

TUBE,9.40 mm ID x 12.70 mm OD x 43.00, 64.23 mm L

1шт.

43

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

45

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

46

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2

1шт.

47

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl 56

1шт.

48

434727A1

MOTOR-PUMP

Axle Air / Lube

1шт.

49

87400024

TUBE,12.70mm OD x 444, 98mm L

Final Drive, Long

2шт.

50

409614A1

TUBE

Return

1шт.

51

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

52

396490A1

U-BOLT

BOLT "U"

2шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

54

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

55

87535336

BRACKET

2шт.

56

87414080

HOSE ASSY.

990 mm (39")

1шт.
