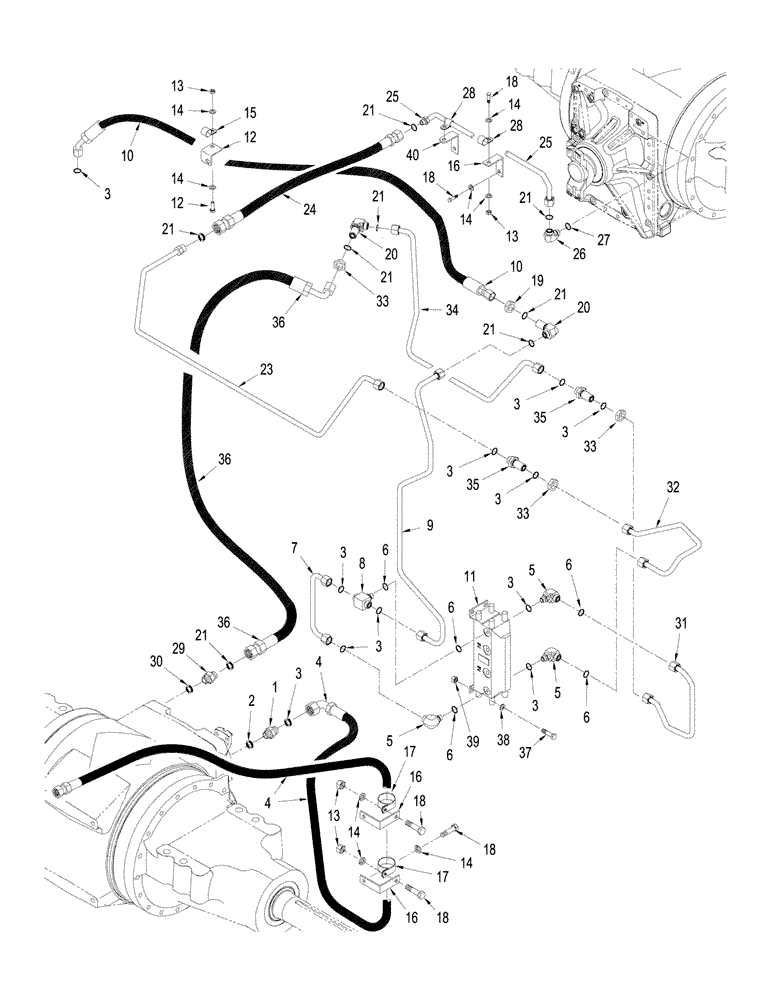

Запчасти Case IH STEIGER 485 (08-08) - 450 SERIES AXLE HYDRAULICS - AIR AND LUBRICATON CIRCUIT (08) - HYDRAULICS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

4

436927A1

HOSE ASSY.

2045 mm (80 1/2in)

1шт.

Used without Power Take Off

1шт.

5

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 6, 3

3шт.

6

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

7

449794A1

TUBE

1шт.

8

87323932

FITTING

Special, 1/2 or x fc sl, Inc. 3, 6

1шт.

9

87381645

HYD TUBE,9.4 mm ID x 12.7 mm OD x 736, 35 mm L

Air Supply, Pump Motor

1шт.

10

86992953

HOSE ASSY.

3шт.

11

434727A1

MOTOR-PUMP

Axle Air / Lube

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

15

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

16

416512A1

BRACKET

Tube

4шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

19

701-903

NUT,13/16" - 16

1шт.

20

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 21

3шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

22

416102A1

SUPPORT

Bracket

1шт.

23

449825A1

TUBE

Air Lubrication

1шт.

24

86993932

HOSE ASSY.

1353 mm (53-1/4")

1шт.

25

87413731

TUBE,12.7 mm OD x 380, 58 mm L

1шт.

26

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 54

1шт.

27

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

29

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 45, 57

1шт.

30

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

31

449817A2

TUBE

1шт.

32

86992542

TUBE,12.70 mm OD

1шт.

33

701-903

NUT,13/16" - 16

2шт.

34

449823A1

TUBE

Return, Charged Pressure

1шт.

35

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 3

1шт.

36

86994373

HOSE ASSY.

2150 mm (84-1/2 in)

1шт.

38

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

39

829-1310

NUT,M10, Cl 10

4шт.

40

87413733

BRACKET

Support

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

37

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.
