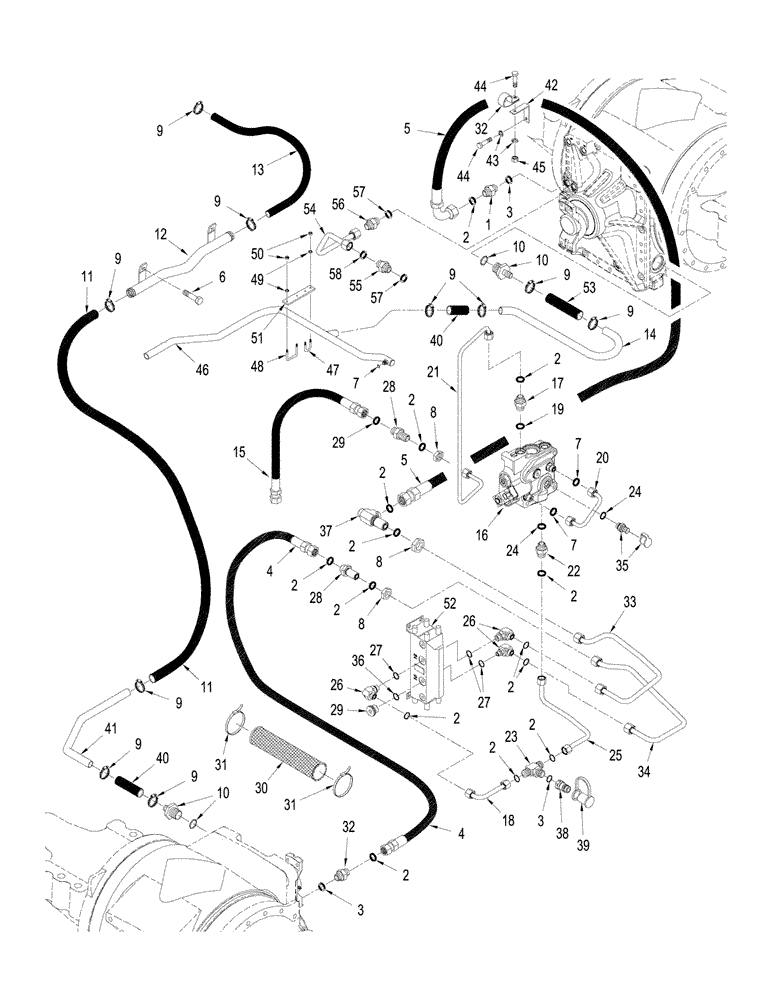

Запчасти Case IH STEIGER 485 (08-07) - 450 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

15шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

390659A2

HOSE ASSY.

2178 mm (86 in)

1шт.

5

87413875

HOSE,12.70 mm ID x 2400.00 mm, SAE 100R1

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

8

701-903

NUT,13/16" - 16

3шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

Axle Drain

2шт.

11

404991A1

HOSE,1.00" ID x 38.00"

Cut From S118383

1шт.

12

87388066

TUBE,25.40mm OD x 593, 199mm L

1шт.

13

87390647

HOSE

787 mm (31 in), Cut From : 31-2755

1шт.

14

416727A1

TUBE

1шт.

15

87414080

HOSE ASSY.

970 mm (38 in)

1шт.

16

411104A2

VALVE

Regulator, See Figure: 08-15

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 2, 19

1шт.

18

87307544

TUBE,9.40 mm ID x 12.70 mm OD x 43.00, 64.23 mm L

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

1шт.

21

449800A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 24

1шт.

23

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 24

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

87307521

TUBE,9.40 mm ID x 12.70 mm OD

1шт.

26

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 2, 27

3шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl 36

1шт.

30

334783A1

SLEEVE

1шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

32

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

33

449813A2

TUBE

1шт.

34

449815A2

TUBE

2шт.

35

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 24

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 2

1шт.

38

392690A1

COUPLING

Diagnostic

1шт.

39

399032A1

CAP

Dust

1шт.

40

435457A1

HOSE,1.00" ID x 4.00"

Cut from Bulk

2шт.

41

416729A1

TUBE

1шт.

42

416512A1

BRACKET

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

45

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

46

409614A1

TUBE

Return

1шт.

47

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

48

396490A1

U-BOLT

BOLT "U"

2шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

50

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

51

87535336

BRACKET

Tube Mounting

2шт.

52

434727A1

MOTOR-PUMP

Axle Air / Lube

1шт.

53

437116A1

HOSE,1.00" ID x 5.00"

Cut from Bulk

1шт.

54

86991772

TUBE,8 mm OD

Pinion Lube

1шт.

55

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc. 57 & 58

1шт.

56

86985637

FITTING

M14 or x 1.6 mm orifice, Inc. 57

1шт.

57

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

58

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
