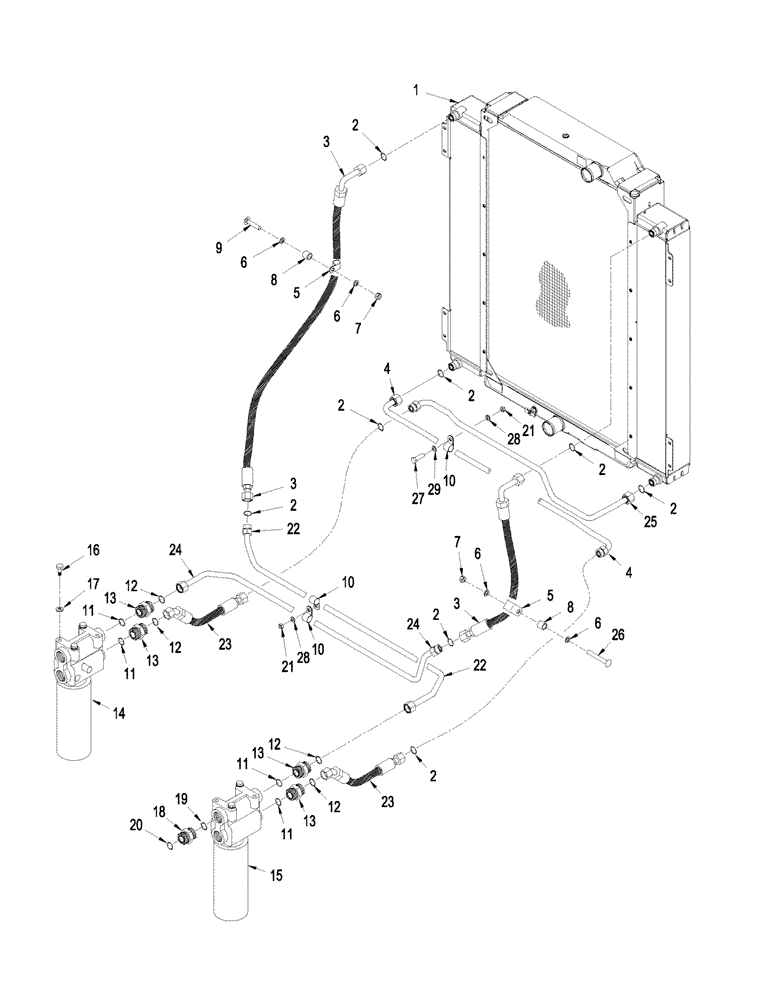

Запчасти Case IH STEIGER 485 (08-02) - HYDRAULIC OIL COOLER, STEIGER 485 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87434388
RADIATOR
Oil, See Figure: 02-05
1шт.
2
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
4шт.
3
87555688
HOSE ASSY.
906 mm (35-3/4")
2шт.
3
87744636
HOSE ASSY.
906 mm (35-3/4")
1шт.
Arctic QUADTRAC Tractor Application
1шт.
4
87667292
HYD TUBE,19.05 mm OD x 945, 200 mm L
from Cooler to RH Filter
1шт.
5
515-25254
CLAMP,1", Insul, 1/2" Bolt
2шт.
6
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
4шт.
7
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
8
87307825
SPACER
2шт.
9
811-10050
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8
2шт.
10
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
6шт.
11
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
12
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
13
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Inc. 11, 12
4шт.
14
REF
INSTRUCTION
Filter, Transmission, LH, See Figure: 08-05
1шт.
17
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
18
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 19 & 20
2шт.
19
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
2шт.
20
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
21
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
6шт.
22
87668080
HYD TUBE,19.05 mm OD
Axle Hydraulics to Cooler
1шт.
23
87663962
HOSE ASSY.
Axle Hydraulics from Cooler, 445 mm (17-1/2")
2шт.
23
87744637
HOSE ASSY.
Axle Hydraulics from Cooler, 445 mm (17-1/2")
2шт.
Arctic QUADTRAC Tractor Application
1шт.
24
87668078
TUBE,19.05 mm OD
Transmission to Cooler
1шт.
25
87667294
HYD TUBE
Transmission from Cooler
1шт.
26
811-10080
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 80mm, Cl 8.8
1шт.
27
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
28
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
29
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
4шт.
Выбрано товаров: 32
