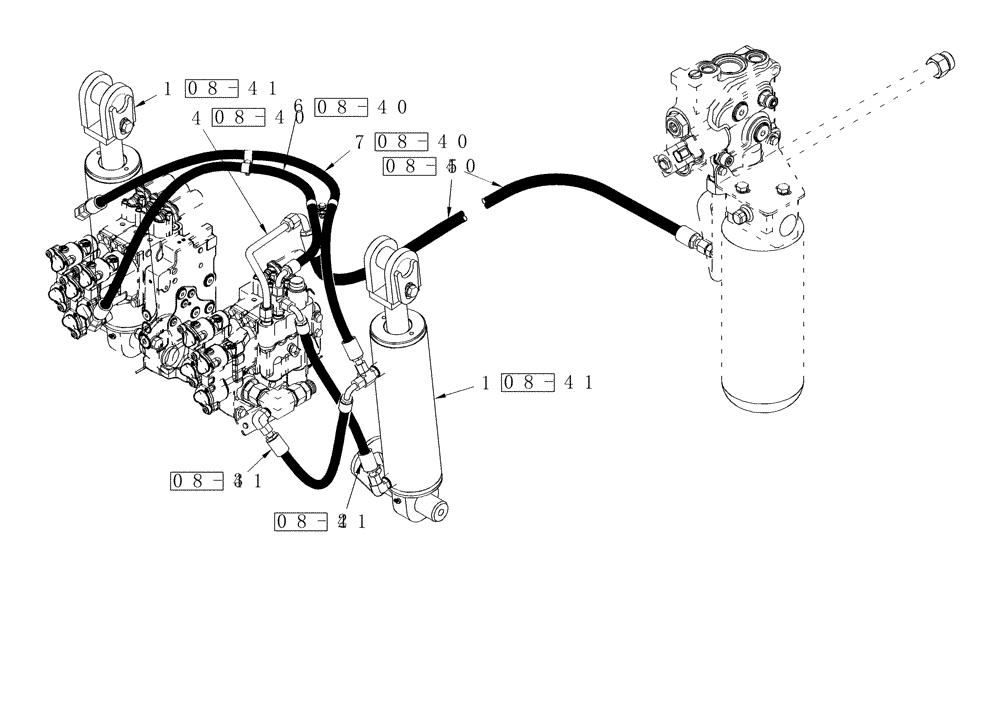

Запчасти Case IH STEIGER 485 (01A-19) - HYDRAULICS - ELECTRONIC HITCH CIRCUIT (00) - PICTORIAL INDEX
2
5
08-40
08-41
08-41
08-41
08-41
08-40
08-40
08-40
1
6
4
3
1
7
№
Артикул
Название
Примечание
Количество
1
Cylinder, Three Point Hitch Lift, See Figure 08-41
1шт.
2
Hose, Right-Hand Cylinder Supply, See Figure 08-40
1шт.
3
Hose, Cylinder Return To Tank, See Figure 08-40
1шт.
4
Tube, Return From Hitch Valve, See Figure 08-40
1шт.
5
Hose, Return To Tank, See Figure 08-40
1шт.
6
Hose, Left-Hand Cylinder Supply, See Figure 08-40
1шт.
7
Hose, Left-Hand Cylinder Return, See Figure 08-40
1шт.
Выбрано товаров: 7
