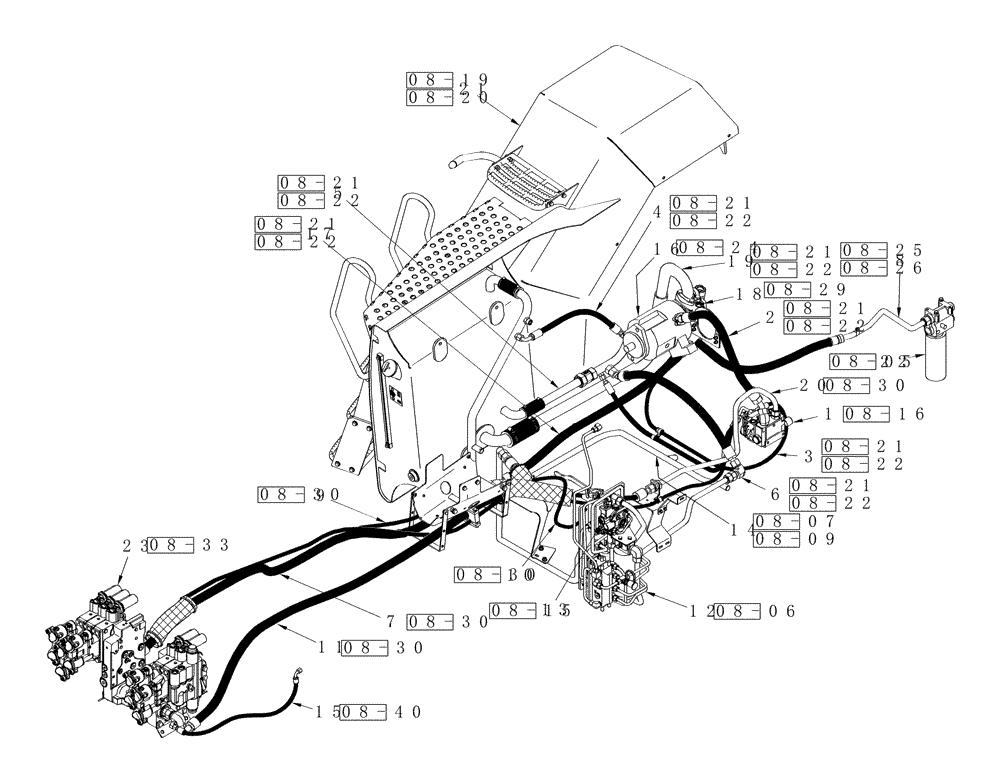

Запчасти Case IH STEIGER 485 (01A-17) - HYDRAULICS - CHARGE PUMP AND AUXILIARY REMOTE CIRCUIT WITH STANDARD HYDRAULICS (00) - PICTORIAL INDEX

1

Valve ASSY., EHPS / Priority, See Figure 08-16

1шт.

2

Hose, Priority Valve Supply, See Figures 08-21, 08-22

1шт.

3

Hose, Pump Load Sense, See Figures 08-21 & 08-22

1шт.

4

Hose, Case Drain, See Figures 08-21 & 08-22

1шт.

5

Tube, Charge Pressure Supply, See Figures 08-21 & 08-22

1шт.

6

Hose, Return, See Figures 08-21 & 08-22

1шт.

7

Hose, Auxiliary Remote Valve Supply, See Figures 08-30

1шт.

8

Tube / Hose Assy., Gear Pump to RH Filter, See Figure 08-21 & 08-22

1шт.

9

Hose, Auxiliary Remote Load Sense, See Figure 08-30

1шт.

10

Hose, Gear Pump Pilot Pressure, Electronic Remotes, See Figure 08-30

1шт.

11

Hose, Auxiliary Remote Return, See Figure 08-30

1шт.

12

Filter, Main Hydraulic, See Figure 08-06

1шт.

13

Valve, Regulator, See Figure 08-15

1шт.

14

Tube, Return, See Figure 08-07 & 08-09

1шт.

15

Hose, Pilot Pressure Return To Rear Axle, See Figure 08-31

1шт.

16

Pump, Piston, See Figure 08-24

1шт.

17

Hose, Charge Pump Outlet, See Figure 08-21 & 08-22

1шт.

18

Pump, Gear, See Figure 08-29

1шт.

19

Tube, Gear Pump Supply, See Figure 08-21 & 08-22

1шт.

20

Tube, Auxiliary Remote Load Sense to EHPS / Priority Valve, See Figure 08-30

1шт.

21

Tank, Hydraulic, Wheel Tractor, See Figure 08-19

1шт.

21

Tank, Hydraulic, QUADTRAC Tractor, See Figure 08-20

1шт.

22

Filter Assy., Axle / Transmission Lubrication, See Figure: 08-05

1шт.

23

Valve Assy., Remote Auxiliary, See Figure: 08-33

1шт.
