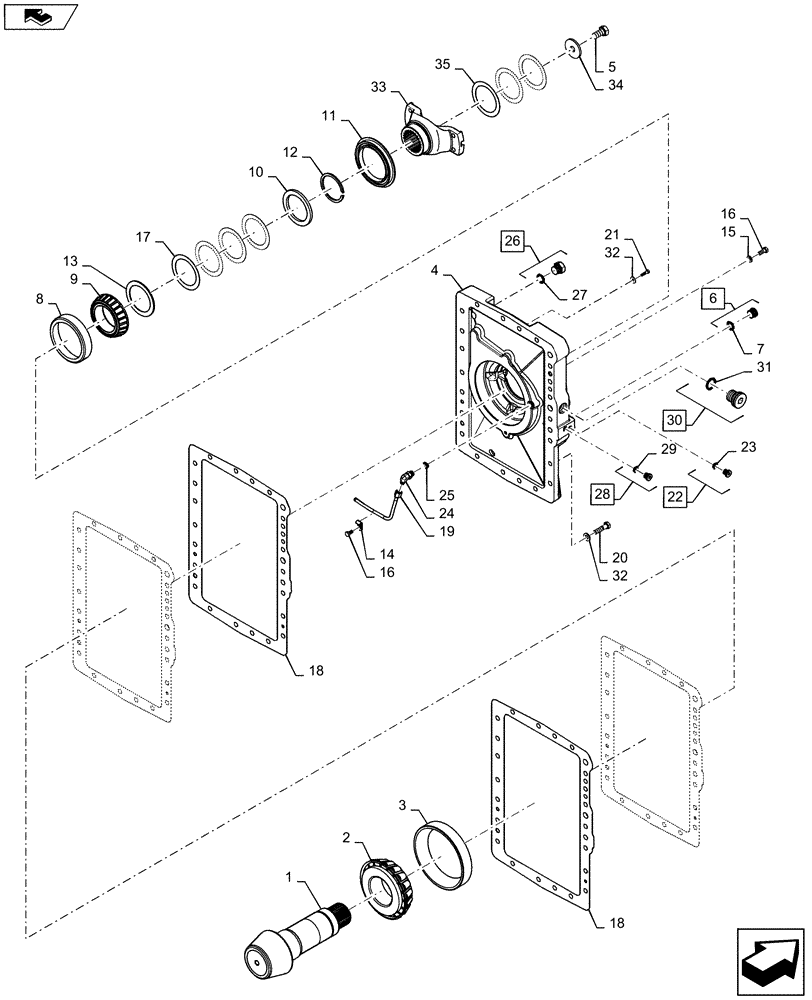

Запчасти Case IH STEIGER 485 (06-64) - 450 SERIES AXLE ASSEMBLY - REAR COVER (06) - POWER TRAIN

87365608

FRONT AXLE

STD W/Diff

1шт.

87365608R

REMAN-FRT AXLE 4 WD

STD Front Axle W/ Diff

1шт.

87365608C

CORE-FRT AXLE 4 WD

CORE-PRESSURE SWITCH STD Front Axle W/Diff

1шт.

87365625

REAR AXLE

STD W/Diff

1шт.

87365625R

REMAN-RR AXLE STD DL

REMAN-REAR AXLE, STD w/DIFF LOCK Steiger 385, Steiger 435, Steiger 485, N.A. Only

1шт.

87365625C

CORE-RR AXLE STDw/DL

CORE-REAR AXLE, STD w/DIFF LOCK Return Number, For N.A. Only

1шт.

87365639

FRONT AXLE

STD W/O Diff

1шт.

87365639R

REMAN-FRT AXLE w/DL

REMAN-FRONT AXLE, w/o DIFF LOCK Steiger 385, Steiger 435, Steiger 485, N.A. Only

1шт.

87365639C

CORE-FRT AXLE w/o DL

Return Number, For N.A. Only

1шт.

87365643

REAR AXLE

STD W/O Diff

1шт.

87365643R

REMAN-REAR AXLE

Steiger 385, Steiger 435, Steiger 485, N.A. Only

1шт.

87365643C

CORE-REAR AXLE

Return Number, For N.A. Only

1шт.

302260A1

GEAR SET

Pinion Shaft and Gears, Incl 1, See Figure 06-66 & 06-67

1шт.

1

NSS

NOT SOLD SEPARAT

12 T / 53 T, Shaft, Pinion

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

86985626

COVER

Rear Axle

1шт.

5

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

6

86625138

PLUG,7/18" - 14

Incl 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

229515A1

RING, SNAP

M4

1шт.

11

87432424

OIL SEAL

Pinion Input Shaft

1шт.

12

228968A2

SPACER

Thick

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

226492A2

SHIM,0.076mm Thk

1шт.

18

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

18

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

18

226496A2

SHIM,0.508mm Thk

1шт.

19

234433A1

TUBE

Lubrication

1шт.

20

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

21

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

8шт.

22

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 23

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

24

86985636

ELBOW

Orificed, 5/16 x 3/8, Incl 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

220069A1

PLUG,M33 x 2, ORB

Incl 27

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 29

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Incl 31

1шт.

31

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

32

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

33

395207A1

YOKE

UNIVERSAL JOINT YOKE 8C

1шт.

34

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

35

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

35

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

35

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

35

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.
