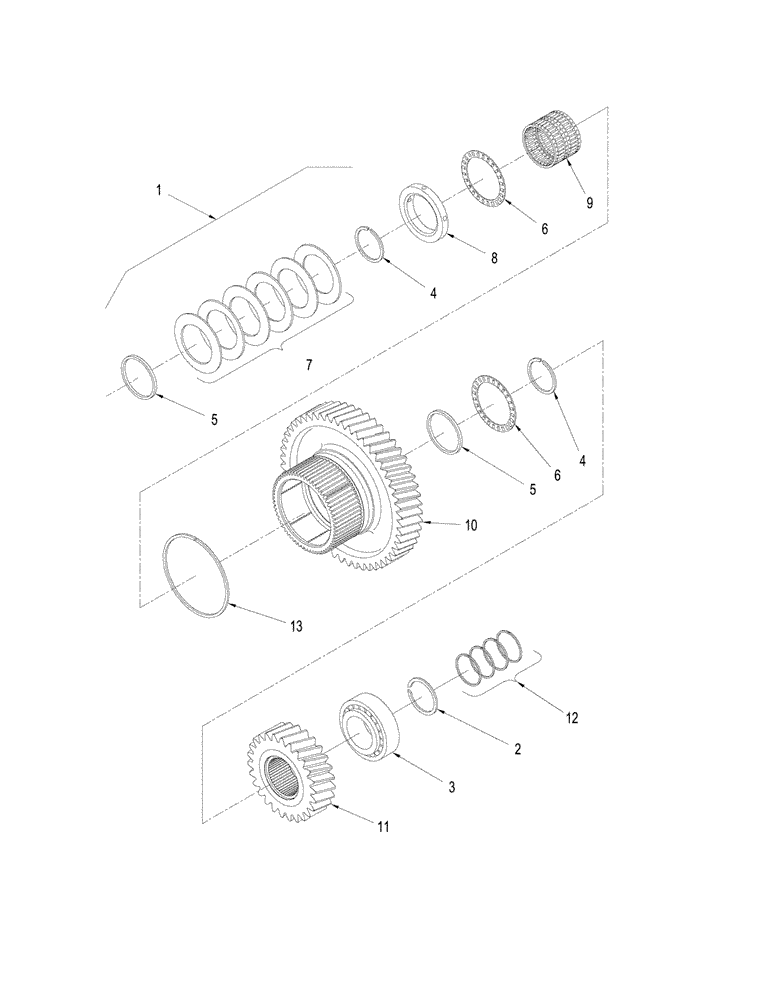

Запчасти Case IH STEIGER 485 (06-56[02]) - POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY (06) - POWER TRAIN

1

87350312

CLUTCH INPUT SHAFT

Fourth, 8C, Inc. 2 - 13, Also See Figure: 06-56 (01)

1шт.

1

87350309

CLUTCH INPUT SHAFT

Fourth, 8,5C, Inc. 2 - 13, Also See Figure: 06-56 (01)

1шт.

2

427674A1

SNAP RING

2,50 mm

1шт.

2

427675A1

SNAP RING

2,60 mm

1шт.

2

427676A1

SNAP RING

2,70 mm

1шт.

2

427678A1

SNAP RING

2,80 mm

1шт.

2

427679A1

SNAP RING

2,90 mm

1шт.

2

427680A1

SNAP RING

3,00 mm

1шт.

3

428675A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller

1шт.

4

S5040S00F

RING

Retaining

4шт.

5

362611A1

SPACER

Needle Bearing

3шт.

6

87640391

THRUST BEARING

4шт.

7

364826A1

PLATE

Spring

6шт.

8

87350331

THRUST WASHER

1шт.

9

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

10

87350334

DRIVEN GEAR

4F

1шт.

11

87350339

DRIVING GEAR

4F

1шт.

12

87431401

RING

Seal

4шт.

13

392073A1

SEALING RING

SEALRING

1шт.
