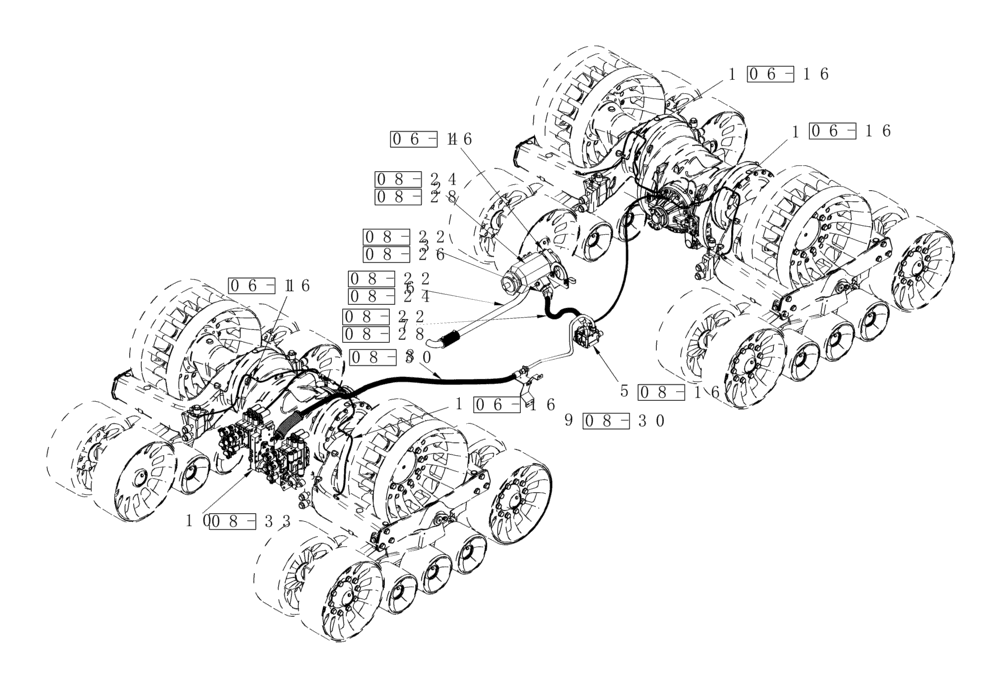

Запчасти Case IH STEIGER 485 (01A-16) - HYDRAULICS - TRACK TENSIONING CIRCUITRY (00) - PICTORIAL INDEX

1

Hose, Tension Supply, See Figure 06-16

1шт.

2

Pump, Piston, Standard Hydraulics, See Figure 08-24

1шт.

2

Pump, Piston, High Output Hydraulics, See Figure 08-28

1шт.

3

Block, Piston Pump, Standard Hydraulics, See Figure 08-22

1шт.

3

Block, Piston Pump, High Output Hydraulics, See Figure 08-28

1шт.

4

Pump, Gear, See Figure 08-29

1шт.

5

Valve, Priority, See Figure 08-16

1шт.

6

Tube, Gear Pump Supply from Tank, Standard Hydraulics, See Figure 08-22

1шт.

6

Tube, Gear Pump Supply from Tank, High Output Hydraulics, See Figure 08-28

1шт.

7

Hose, Priority Valve Supply, Standard Hydraulics, See Figure 08-22

1шт.

7

Hose, Prioirty Valve Supply, High Output Hydraulics, See Figure 08-28

1шт.

8

Hose, Auxiliary Remote Supply, See Figure 08-30

1шт.

9

Tube, Auxiliary Remote Supply, See Figure 08-30

1шт.

10

Valve Assy., Auxiliary Remote, See Figure 08-33

1шт.
