Запчасти Case IH STEIGER 485 (06-24) - POWER TAKEOFF - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

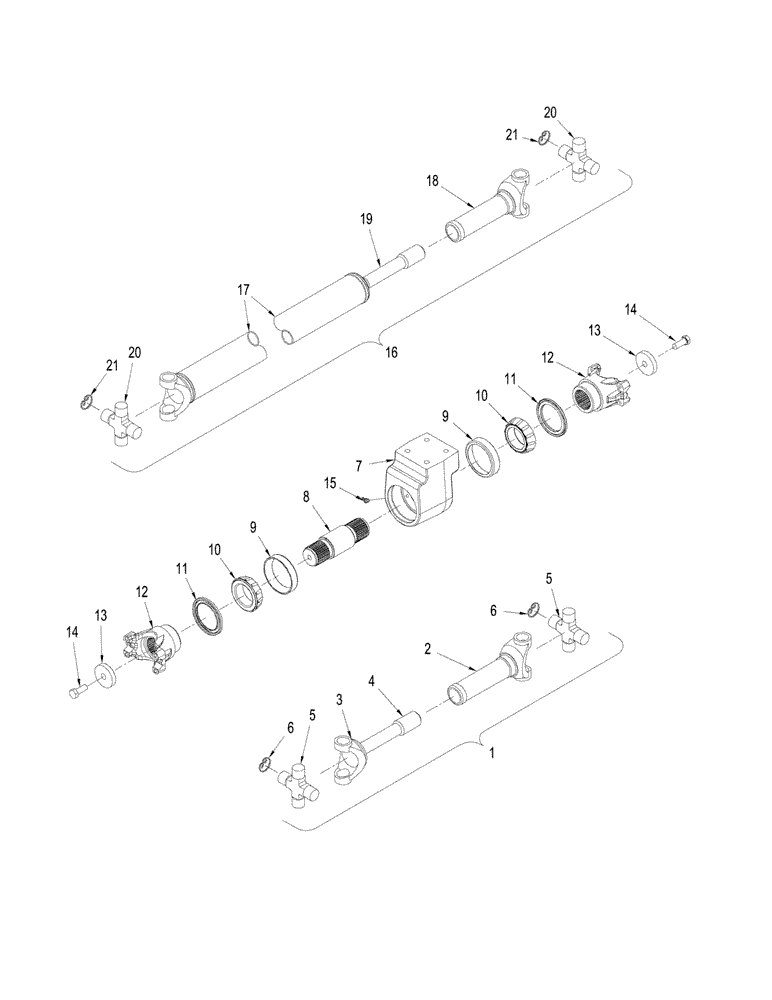

Схема запчастей Case IH STEIGER 485 - (06-24) - POWER TAKEOFF - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN
21
11
14
5
10
21
13
14
4
19
9
8
16
20
7
11
20
12
18
5
6
12
15
17
1
9
10
6
13
3
2

Артикул

Название

Примечание

Количество

1

404798A1

SHAFT

Articulation, Inc. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Yoke, Slip

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft

1шт.

4

33-1001T1

SEAL RETAINER

1шт.

5

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Inc. 6

2шт.

6

S92378

RING, SNAP

RING SNAP

4шт.

7

399447A1

HOUSING, BEARING

1шт.

8

399446A1

SHAFT

PTO Hanger Bearing

1шт.

9

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

2шт.

10

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

11

435537A1

SEAL

2шт.

12

398554A1

YOKE

UNIVERSAL JOINT YOKE

2шт.

13

19-5864

WASHER

5/8 x 2-3/4 x 1/2

2шт.

14

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

16

404799A1

DRIVE SHAFT

Rear, Inc. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft

1шт.

18

NSS

NOT SOLD SEPARAT

Yoke, Slip

1шт.

19

33-1001T1

SEAL RETAINER

1шт.

20

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Inc. 21

2шт.

21

S92378

RING, SNAP

RING SNAP

4шт.

Выбрано товаров: 21
