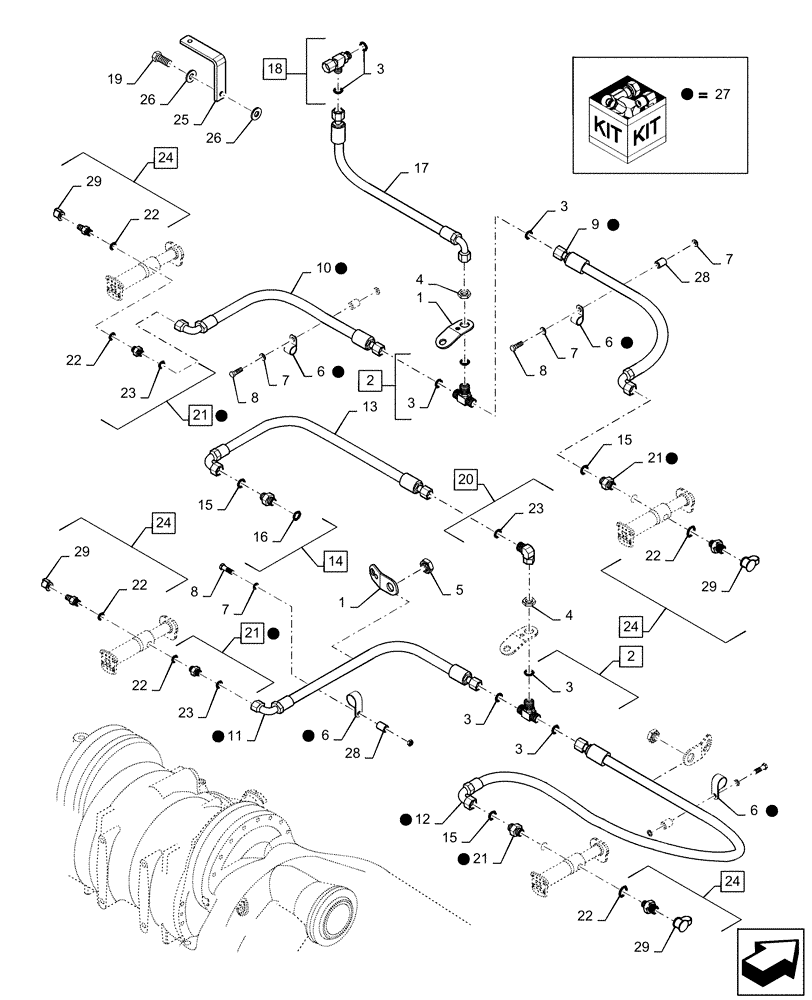

Запчасти Case IH STEIGER 485 (06-16) - TRACK TENSIONING, QUADTRAC TRACTOR (06) - POWER TRAIN

1

87306552

BRACKET

Mounting, Track Tensioning

8шт.

2

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

Incl 3

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

4

701-909

NUT,11/16" - 16

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

6

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

10шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

22шт.

8

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

4шт.

9

87735264

HOSE,9.53mm ID x 1836mm L

1836 mm (72-1/4"), Right Front

1шт.

9

84152273

HOSE ASSY.

1836 mm (72-1/4"), Right Front

1шт.

Arctic QUADTRAC Tractor Application

1шт.

10

87735263

HOSE,9.53mm ID x 1956mm L

1956 mm (77.00"), Left Front

1шт.

10

84152271

HOSE ASSY.

1956 mm (77.00"), Left Front

1шт.

Arctic QUADTRAC Tractor Application

1шт.

11

87735261

HOSE,9.53mm ID x 2015mm L

2015 mm (79.33"), Left Rear

1шт.

11

84152270

HOSE ASSY.

2015 mm (79.33"), Left Rear

1шт.

Arctic QUADTRAC Tractor Application

1шт.

12

87735263

HOSE,9.53mm ID x 1956mm L

1956 mm (77.00"), Right Rear

1шт.

12

84152271

HOSE ASSY.

1956 mm (77.00"), Right Rear

1шт.

Arctic QUADTRAC Tractor Application

1шт.

13

87306651

HOSE ASSY.,9.53mm ID x 1200mm L

1200 mm (47-1/4"), Aux Valve "PS" Port to Rear Tensioner Hose Tee

1шт.

13

87346267

HOSE

1200 mm (47-1/4"), Aux Valve "PS" Port to Rear Tensioner Hose Tee

1шт.

Arctic QUADTRAC Tractor Application

1шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

87550216

HOSE ASSY.

488 mm (19-1/4"), Pump Pressure Diagnostic Tee to Front Tensioner Hose Tee

1шт.

17

87489696

HOSE

492 mm (19 3/8"), Standard Pump with PS1

1шт.

17

84152274

HOSE ASSY.

492 mm (19-3/8"), Pump Pressure Diagnostic Tee to Front Tensioner Hose Tee

1шт.

Arctic QUADTRAC Tractor Application

1шт.

18

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 3, to Priority / EHPS Valve

1шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

20

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 23

1шт.

21

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

Relief, Incl 22, 23

4шт.

In Cases Where Excessive Material Build Up Causes Track Tension Cylinder Failure, It's Recommended to Replace All 4 Check Valves, p/n 314270A1, with Relief Valve p/n 87664542.

1шт.

Used with Ag Applications.

1шт.

21

87664542

CHECK VALVE

Relief

4шт.

Used with Scraper Applications

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

24

325647A2

COUPLING

M18, Diagnostic - Incl 22, 29

4шт.

25

87450401

BRACKET, SUPPORTING

Track Tension Hose

4шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

27

87740640

SERVICE KIT

Cylinder Relief Valve, Incl 6, 9 - 12, 21

1шт.

28

84124202

SPACER

Tension Hose

4шт.

29

86502604

DUST CAP

4шт.
