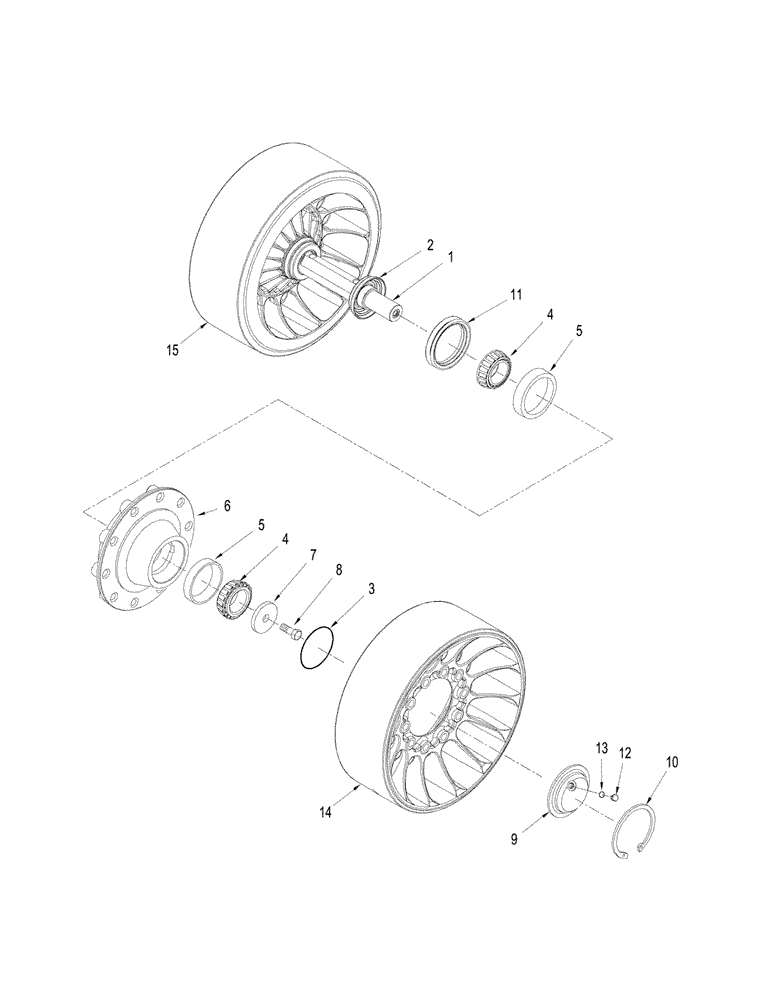

Запчасти Case IH STEIGER 485 (06-13) - AXLE ASSEMBLY - REAR IDLER, QUADTRAC TRACTOR (06) - POWER TRAIN

1

87451058

SHAFT

Assy., Rear Idler

1шт.

2

87304016

CUP,86mm ID x 154mm OD x 35.8mm Thk

2шт.

3

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

4

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

5

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

6

84234874

HUB

Rear Idler

1шт.

6

379708A3

HUB

Rear Idler

1шт.

Arctic QUADTRAC Tractor Application

1шт.

7

87387720

RETAINER

Bearing

2шт.

Arctic QUADTRAC Tractor Application

1шт.

8

87449801

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

Used with AG Applications

1шт.

8

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60mm

2шт.

Used with Scraper Applications

1шт.

9

87408174

CAP

2шт.

Also Order 246406A1 Plug

1шт.

10

800-21130

SNAP RING,M130, Int

2шт.

11

87437010

SEAL

Face

2шт.

11

87427009

SEAL

Multiple Lip

2шт.

Arctic QUADTRAC Tractor Application

1шт.

12

246406A1

PLUG,M12 x 1.5 ORB

Inc. 13

2шт.

13

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

14

87441100

WHEEL ASSY

Rear Idler, Bolt-on

1шт.

14

87441100R

REMAN-WHEEL IDLER

Reman Roller

1шт.

14

87441100C

CORE-WHEEL IDLER

Return Number

1шт.

14

87752138R

REMAN-WHEEL ROLLER

1шт.

14

87752138C

CORE-WHEEL ROLLER

Return Number

1шт.

15

NSS

NOT SOLD SEPARAT

Wheel Assy., Rear Idler, Inboard

1шт.

Service with 87416606 Hub and 87441100 Wheel Assy.

1шт.
