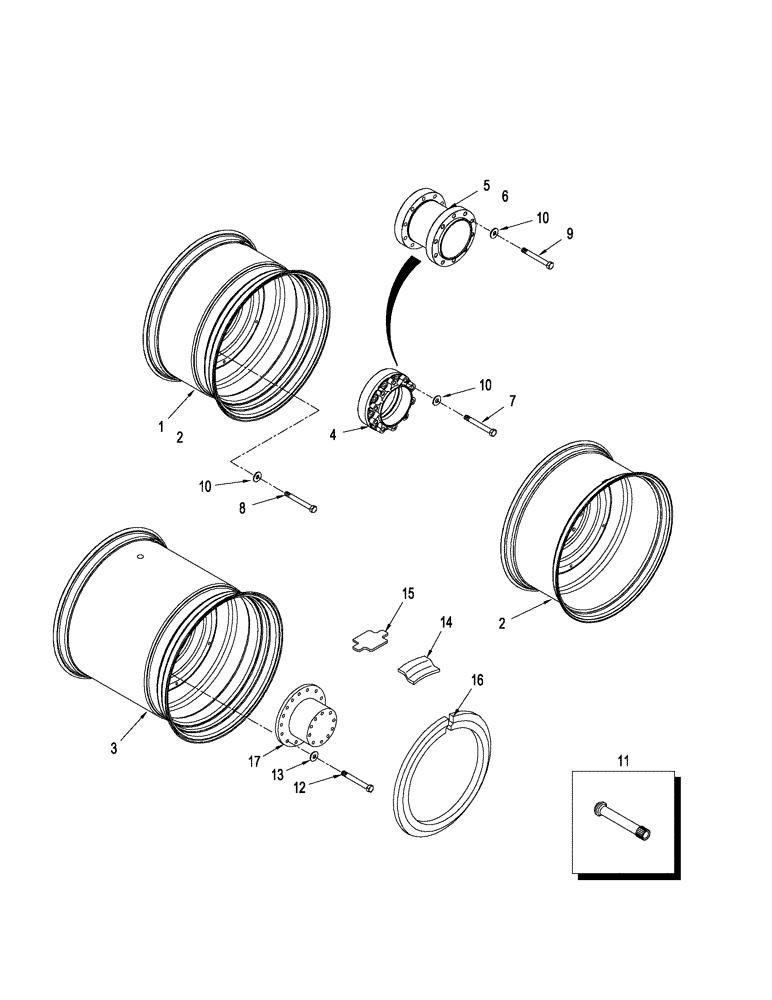

Запчасти Case IH STEIGER 485 (06-06) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN

1

193273A1

WHEEL

27 x 32, Single

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

305792A1

RIM

MW23A x 42, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

193300A2

RIM

MW23A x 38, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

396113A1

RIM

WHEEL W16A x 46, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

222665A1

WHEEL

W18A x 38, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

193857A1

WHEEL

W18A x 42, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

276687A1

WHEEL

MW20A x 42, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

311352A1

WHEEL

28 x 42, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

403037A1

RIM

MW 25 x 38, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

196254A1

WHEEL

W13 x 46, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87443702

WHEEL

46 x FDW20A, Single or Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756399

WHEEL ASSY

38 x MW27B, Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756401

WHEEL ASSY

38 x MW23A, Dual

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756404

WHEEL ASSY

42 x FDW20B

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756406

WHEEL ASSY

42 x FDW23B

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756410

WHEEL ASSY

42 x FDW28B

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87756404

WHEEL ASSY

42 x D-MW20A with Valve Guard

1шт.

Used with Scraper Applications

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

2

87620665

WHEEL

38 x MW23A with Valve Guard

1шт.

Used with Scraper Applications

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

3

87312787

WHEEL

32 x DWM44

4шт.

Used with Scraper Applications

1шт.

Used with Single Wheel Dual Hub Application

1шт.

Reference Your Tire Manufacturer's Tire Guide for Approved Tires that Fit on this Rim.

1шт.

4

405822A1

SPACER

127 mm (5")

1шт.

5

405823A1

SPACER

254 mm (10")

1шт.

5

403846A1

KIT

Spacer, 254 mm (10")

1шт.

Used with Scraper Applications

1шт.

6

405824A1

SPACER

330 mm (13")

1шт.

7

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

10шт.

8

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.

9

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

10шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

11

A20058

VALVE STEM

1шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

64шт.

Used with Scraper Applications

1шт.

Used with Single Wheel Dual Hub Application

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

64шт.

Used with Scraper Applications

1шт.

Used with Single Wheel Dual Hub Application

1шт.

14

87380382

RING

Side, w/ Driver Pocket, 32" x 1"

1шт.

15

87380372

KEY

Driver

1шт.

16

87380409

RING

Locking, 32" x 31" Type VA5

1шт.

17

87380429

DISC

Hub Mounting, FC .375" x 24.675" OD, 10 Hole

1шт.
