Запчасти Case IH STEIGER 485 (05-09) - ACCUGUIDE - HYDRAULIC, STEERING (05) - STEERING

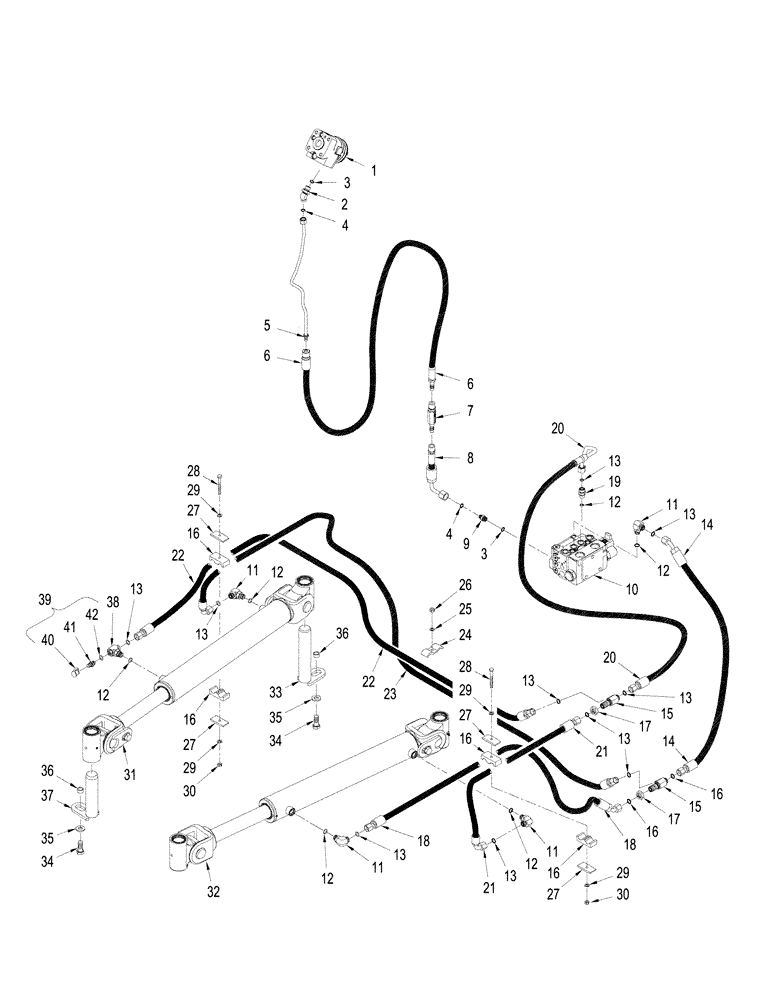

Схема запчастей Case IH STEIGER 485 - (05-09) - ACCUGUIDE - HYDRAULIC, STEERING (05) - STEERING
20
13
8
11
11
36
28
17
27
6
13
13
16
12
34
12
13
17
22
16
27
12
31
5
12
18
21
7
18
29
36
3
33
30
14
16
37
30
25
27
9
14
3
2
19
29
35
20
41
10
11
27
24
13
1
29
13
34
13
6
13
12
23
4
26
38
22
15
12
4
35
29
32
11
15
39
28
16
13
16
21
40
16

Артикул

Название

Примечание

Количество

1

87426127

HYDRAULIC STEERING

Orbital Steering Control, See Figure: 05-08, Serial Range: -Z7F108911

1шт.

1

87667045

STEERING VALVE

Steering, Control Orbital, See Figure: 05-08, Start Serial: Z7F108911

1шт.

2

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

1шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

6шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

5

87312091

TUBE,9.52 mm OD

Port 'P', Steering Control to Priority Valve

1шт.

6

87347199

HOSE,9.53mm ID x 660mm L

860 mm (34"), Steering Control Valve to Priority Valve

1шт.

6

84162568

HOSE

860 mm (34"), Steering Control Valve to Priority Valve

1шт.

Arctic QUADTRAC Tractor Application

1шт.

7

84270357

PRESSURE SWITCH

In-Line Flow

1шт.

7

84270357R

REMAN-PRESSURE SWITC

Remanufactured Pressure Switch

1шт.

7

84270357C

CORE-FRT AXLE w/DL

CORE-PRESSURE SWITCH Return Number, PRESSURE SWITCH

1шт.

8

87347197

HOSE

160 mm (6-1/4"), Adapter

1шт.

8

87744638

HOSE ASSY.

160 mm (6-1/4"), Adapter

1шт.

Arctic QUADTRAC Tractor Application

1шт.

9

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

1шт.

10

87585898

HYDRAULIC VALVE

EHPS / Priority, See Figure: 08-16

1шт.

11

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 12 & 13

4шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

87439175

HOSE ASSY.,12.7mm ID x 1257mm L

1257 mm (49-1/2"), Priority Valve to Articulation Cylinder

1шт.

14

87610036

HOSE ASSY.

1257 mm (49-1/2"), Priority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

15

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 13

2шт.

16

50-2551T1

CLAMP

4шт.

17

701-903

NUT,13/16" - 16

2шт.

18

87439172

HOSE ASSY.,12.7mm ID x 991mm L

991 mm (39"), Priority Valve to Articulation Cylinder

1шт.

18

87610037

HOSE ASSY.

991 mm (39"), Prority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

19

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 12 & 13

1шт.

20

87304379

HOSE ASSY.

1308 mm (52"), Priority Valve to Articulation Cylinder

1шт.

20

87610051

TUBE,12.7 mm OD

1308 mm (52"), Priority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

21

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2"), Priorty Valve to Articulation Cylinder

1шт.

21

437278A1S

HOSE ASSY.

550 mm (21-1/2"), Priority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

22

367243A1

HOSE ASSY.

1605 mm (63"), Prioirty Valve to Articulation Cylinder

1шт.

22

437277A1S

HOSE ASSY.

1605 mm (63"), Priority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

23

87312871

HOSE,12.7mm ID x 1170mm L

1170 mm (46-1/2"), Priority Valve to Articulation Cylinder

1шт.

23

87610038

HOSE ASSY.

1170 mm (46-1/2"), Priority Valve to Articulation Cylinder

1шт.

Arctic QUADTRAC Tractor Application

1шт.

24

242563A1

CLAMP

1шт.

25

892-11012

LOCK WASHER,M12

1шт.

26

829-1412

NUT,M12, Cl 10.9

3шт.

27

50-2533T1

PLATE

Cover

4шт.

28

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

31

406999A1

STEERING CYLINDER

Articulation, without Sensor, See Figure: 05-06

1шт.

Used on Scraper Units BSN Z8F111662 & AG Units BSN Z8F111831.

1шт.

31

87304296

STEERING CYLINDER,Double Acting, 50mm Rod, 526mm Stroke

Articulation, without Sensor, See Figure: 05-06 (01)

1шт.

Used on Scraper Units ASN Z8F111662 & AG Units ASN Z8F111831.

1шт.

Used with Autosense Steering Applications

1шт.

31

87304296R

REMAN-HYD CYLINDER

Reman for New PN 87304296

1шт.

31

87304296C

CORE-HYD CYLINDER

Return Number

1шт.

32

87552147

STEERING CYLINDER

Articulation, with Sensor, See Figure: 05-10

1шт.

Used on Scraper Units BSN Z8F111662 & AG Units BSN Z8F111831.

1шт.

32

87597411R

REMAN-HYD CYLINDER

Remanufactured Hydraulic Steering Cylinder

1шт.

32

87597411C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER

1шт.

32

87552147C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER

1шт.

32

87304296

STEERING CYLINDER,Double Acting, 50mm Rod, 526mm Stroke

Articulation, without Sensor, See Figure: 05-06 (01)

1шт.

Used on Scraper Units ASN Z8F111662 & AG Units ASN Z8F111831.

1шт.

Used with Autosense Steering Applications

1шт.

33

70-6085T2

PIN

9-1/2"

2шт.

34

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

35

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

36

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

37

70-6076T3

PIN

2шт.

38

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 or x 12 fc sl, Inc. 12 & 13

1шт.

39

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 40 - 42

1шт.

40

H434163

DUST CAP

1шт.

41

NSS

NOT SOLD SEPARAT

Fitting

1шт.

42

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
