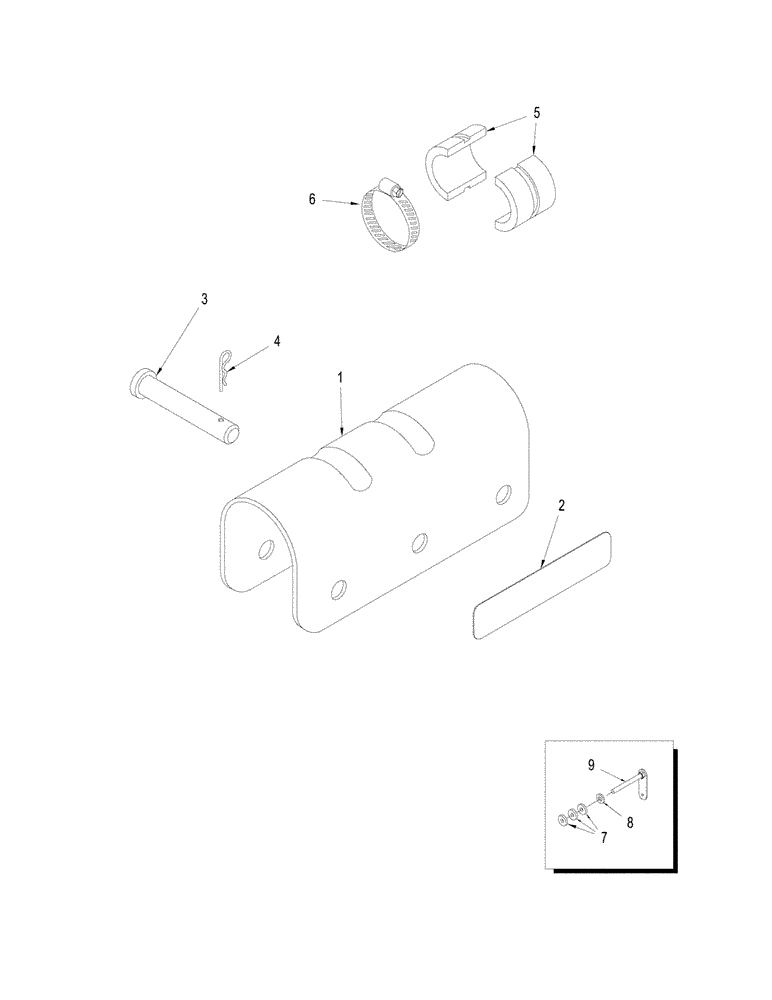

Запчасти Case IH STEIGER 485 (05-07) - ARTICULATION LOCKS (05) - STEERING

1

403824A2

LOCK

Articulation

1шт.

QUADTRAC & Scraper Tractor

1шт.

1

403820A2

LOCK

Articulation, with Stops

1шт.

STEIGER Wheel Tractor

1шт.

1

403817A2

LOCK

Articulation, without Stops

1шт.

STEIGER Wheel Tractor

1шт.

STX Wheel Tractor

1шт.

2

440518A1

DECAL

Locking Block

1шт.

3

427-8325

CLEVIS PIN,1/2" x 3 1/4"

1шт.

4

435425A1

PIN

Hair

1шт.

5

403822A1

STOP

Articulation

4шт.

6

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

7

321323A1

ADAPTER

Bushing

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

9

406390A1

HANDLE

Mounting, Articulation Lock

1шт.
