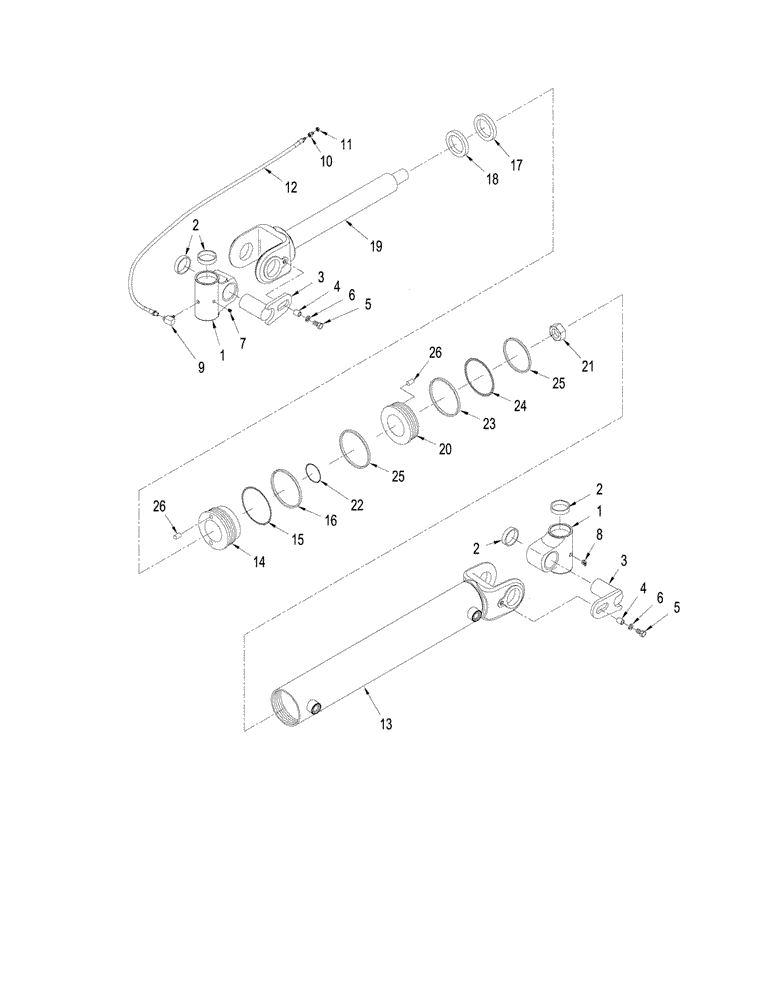

Запчасти Case IH STEIGER 485 (05-06) - CYLINDER ASSEMBLY - ARTICULATION, BSN Z8F111831 (05) - STEERING

1

409685A1

JOINT

2шт.

2

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

8шт.

3

70-6013T2

PIN

2шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

86637724

PLUG,1/8" - 27 NPT

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12

1339090C1

HOSE

838 mm (33 in)

1шт.

406999A1

STEERING CYLINDER

Inc. 13 - 26

1шт.

Used on Scraper Units BSN Z8F111662 & AG Units BSN Z8F111831.

1шт.

13

387651A1

JACK BODY

Barrel

1шт.

14

387652A1

CYLINDER END CAP

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wiper

1шт.

19

387650A1

PISTON ROD

1шт.

20

387648A1

PISTON

1шт.

21

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

26

NSS

NOT SOLD SEPARAT

Screw

1шт.

387654A1

SEAL KIT

Inc. 15 - 18, 22 - 26

1шт.
