Запчасти Case IH STEIGER 485 (05-06[01]) - CYLINDER ASSEMBLY - ARTICULATION, ASN Z8F111831 (05) - STEERING

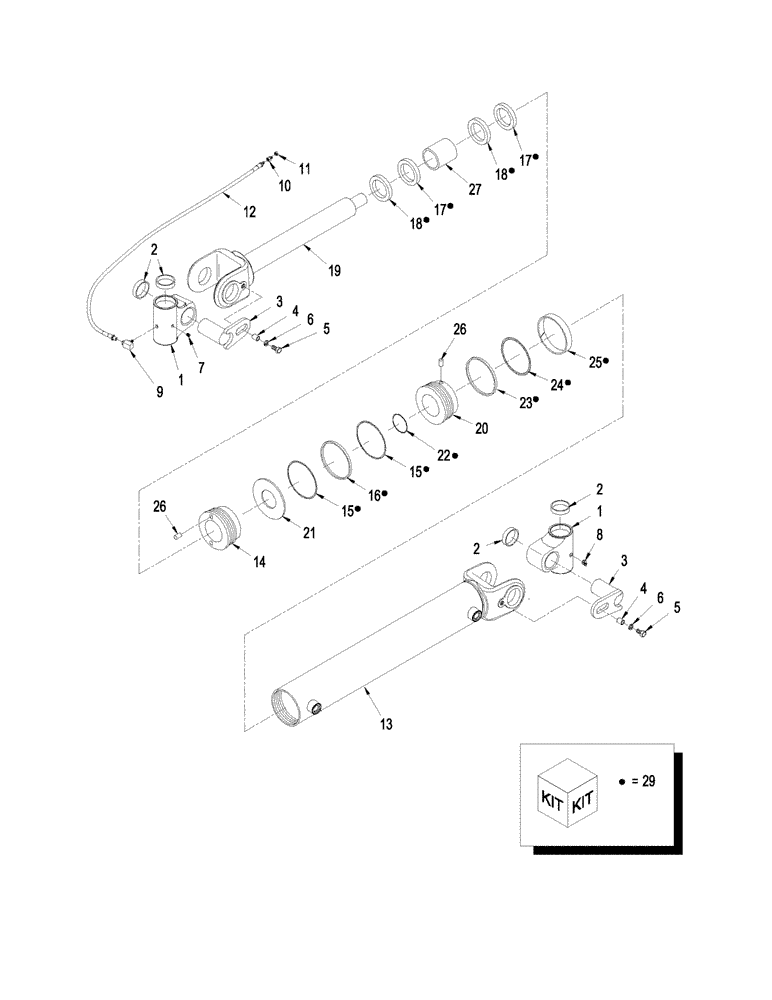

Схема запчастей Case IH STEIGER 485 - (05-06[01]) - CYLINDER ASSEMBLY - ARTICULATION, ASN Z8F111831 (05) - STEERING
26
3
29
29
22
29
2
2
29
17
15
4
7
6
29
1
23
13
29
6
9
27
20
29
19
5
26
11
18
25
4
29
12
8
29
16
3
21
14
5
1
29
15
17
24
29
29
10
18
2
29

Артикул

Название

Примечание

Количество

1

409685A1

JOINT

2шт.

2

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

8шт.

3

70-6013T2

PIN

2шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

86637724

PLUG,1/8" - 27 NPT

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12

1339090C1

HOSE

838 mm (33 in)

1шт.

87304296

STEERING CYLINDER,Double Acting, 50mm Rod, 526mm Stroke

Inc. 13 - 27

1шт.

Used on Scraper Units ASN Z8F111662 & AG Units ASN Z8F111831.

1шт.

12

87304296R

REMAN-HYD CYLINDER

Steiger 385, Steiger 435, Steiger 485, Steiger 535, Used On Scraper Units ASN Z8F111662 & AG Units ASN Z8F11831 (8/07)

1шт.

12

87304296C

CORE-HYD CYLINDER

Return Number

1шт.

13

87378383

TUBE

Barrel

1шт.

14

87378379

COVER

End Cap

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

2шт.

18

NSS

NOT SOLD SEPARAT

Wiper

2шт.

19

87378381

ROD

Piston

1шт.

20

87378376

PISTON

1шт.

21

87378378

WASHER

End Cap

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

26

NSS

NOT SOLD SEPARAT

Screw, Set

1шт.

27

87378380

BUSHING

Wear

1шт.

28

87377670

SEAL KIT

Inc. 15 - 18, 22 - 25

1шт.

Выбрано товаров: 32
