Запчасти Case IH STEIGER 485 (05-04) - STEERING COLUMN ASSEMBLY (05) - STEERING

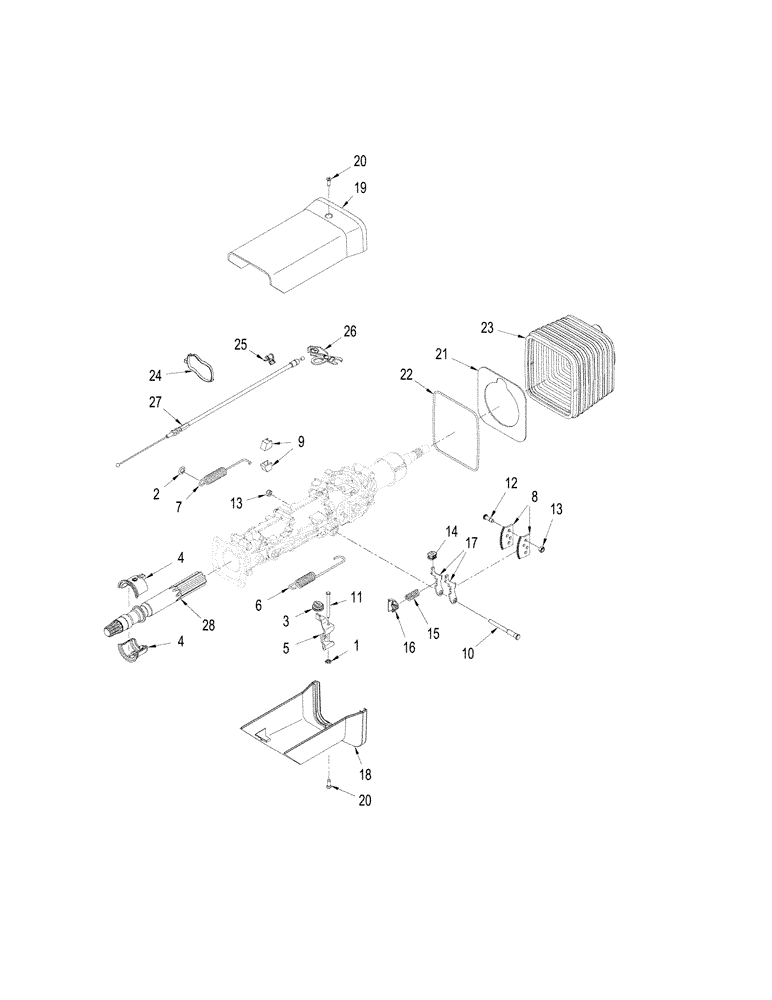

Схема запчастей Case IH STEIGER 485 - (05-04) - STEERING COLUMN ASSEMBLY (05) - STEERING
11
4
5
4
20
7
13
19
28
18
20
16
17
23
27
8
15
25
14
12
10
22
3
26
1
24
2
9
13
21
6

Артикул

Название

Примечание

Количество

87387459

STEERING COLUMN

Inc. 1 - 27, Serial Range: -Z8F109999

1шт.

87640973

STEERING COLUMN

Inc. 1 - 27, Start Serial: Z8F109999

1шт.

87377005

SERVICE KIT

Renovation, Inc. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Bushing, Telescoping Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing, Axial

2шт.

5

NSS

NOT SOLD SEPARAT

Arm, Regulating

1шт.

6

NSS

NOT SOLD SEPARAT

Spring, Tilt Return

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Telescoping

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Tilt Position

2шт.

9

NSS

NOT SOLD SEPARAT

Stop, Tilt, 24"

2шт.

10

NSS

NOT SOLD SEPARAT

Clevis, Pin

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Hook

1шт.

12

NSS

NOT SOLD SEPARAT

Screw, M6 x 18

2шт.

13

NSS

NOT SOLD SEPARAT

Nut, Locking, M6

3шт.

14

NSS

NOT SOLD SEPARAT

Bushing, Catch

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Catch

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

17

NSS

NOT SOLD SEPARAT

Catch

2шт.

87377007

SERVICE KIT

Cover, Inc. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Cover, Upper

1шт.

19

NSS

NOT SOLD SEPARAT

Cover, Lower

1шт.

20

NSS

NOT SOLD SEPARAT

Screw, M5 x 16

2шт.

87377012

SERVICE KIT

Boot, Inc. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

Plate, Support

1шт.

22

NSS

NOT SOLD SEPARAT

Wire, Support

1шт.

23

NSS

NOT SOLD SEPARAT

Boot

1шт.

87377013

SERVICE KIT

Release Lever, Inc. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

Tie, Cable

1шт.

25

NSS

NOT SOLD SEPARAT

Retainer, Cable

1шт.

26

NSS

NOT SOLD SEPARAT

Lever, Release

1шт.

27

NSS

NOT SOLD SEPARAT

Cable

1шт.

Выбрано товаров: 33
