Запчасти Case IH STEIGER 485 (05-01[01]) - STEERING WHEEL AND COLUMN BSN Z8F109999 (05) - STEERING

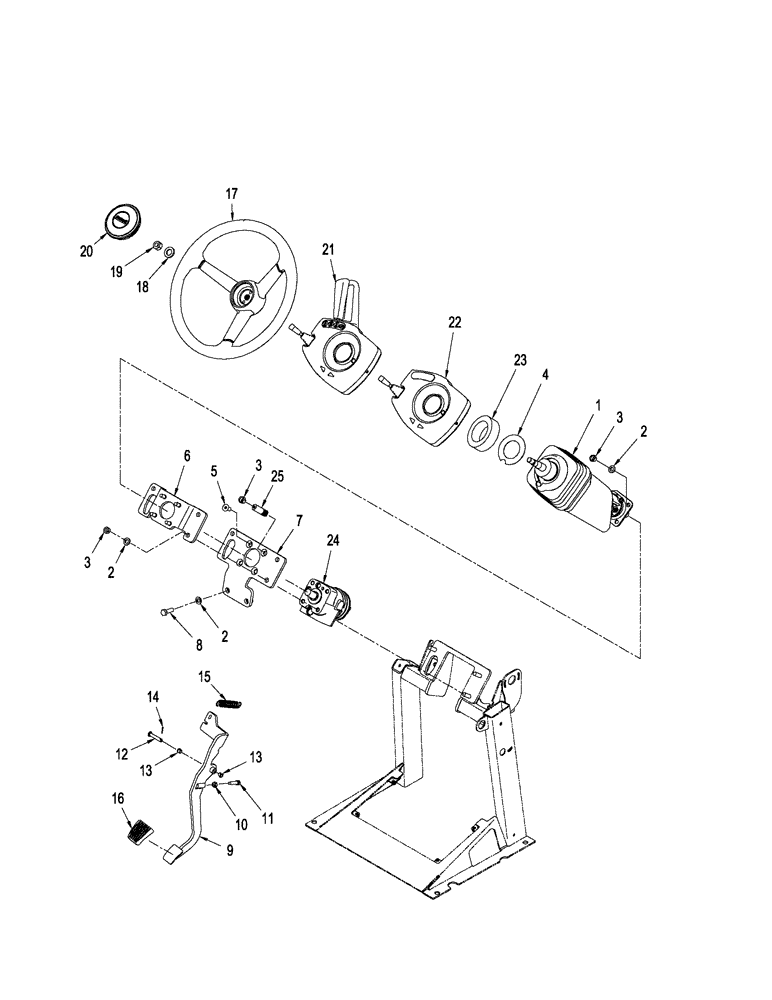

Схема запчастей Case IH STEIGER 485 - (05-01[01]) - STEERING WHEEL AND COLUMN BSN Z8F109999 (05) - STEERING
8
18
6
3
2
11
13
2
2
14
17
19
13
23
21
25
4
9
12
5
22
16
1
7
3
10
15
24
3
20

Артикул

Название

Примечание

Количество

1

87387459

STEERING COLUMN

See Figure: 05-04, Serial Range: -Z8F109999

1шт.

1

87640973

STEERING COLUMN

See Figure: 05-04, Start Serial: Z8F109999

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

11шт.

4

1977448C2

WASHER

Support

1шт.

5

220056A1

SCREW,Hex Soc Flat Hd, M10 x 20mm, Cl 8.8

, Serial Range: -Z8F109999

4шт.

6

87448525

BRACKET

Mounting, Steering Column, Serial Range: -Z8F109999

1шт.

7

87309685

BRACKET

Mounting, Column / Pump, Serial Range: -Z8F109999

1шт.

7

87739482

BRACKET

Mounting, Column / Pump, Start Serial: Z8F109999

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

87448446

PEDAL

w/ Steering Adjustment

1шт.

10

829-1508

NUT,M8, Cl 10

1шт.

11

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

12

729-845

CLEVIS PIN,M8 x 45

1шт.

13

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

Nylon

2шт.

14

733-2012

COTTER PIN,M2 x 12

1шт.

15

311812A1

SPRING

Extension

1шт.

16

323657A1

PAD

Foot Release Pedal

1шт.

17

301200A1

STEERING WHEEL

1шт.

Deluxe Cab

1шт.

17

359033A1

STEERING WHEEL

1шт.

Luxury Cab

1шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

19

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

20

361024A3

CAP

Medallion, Steering Wheel

1шт.

20

84236781

DECAL

AFS Emblem, Steering Wheel

1шт.

21

86993721

CONSOLE

Transmission, w/ Self Cancel, See Figure: 05-03

1шт.

With Power Shift Transmission

1шт.

22

414332A1

CONTROL

Transmission, w/ Self Cancel, See Figure: 05-02

1шт.

With Manual Shift Transmission

1шт.

23

253679A1

RING

Magnetic

1шт.

24

87426127

HYDRAULIC STEERING

Control Valve, See Figure: 05-08, Serial Range: -Z8F109999

1шт.

24

87667045

STEERING VALVE

Steering Control Valve, See Figure: 05-08, Start Serial: Z8F109999

1шт.

25

84370087

SET SCREW

M10 X 50 Hex Soc

4шт.

Выбрано товаров: 34
