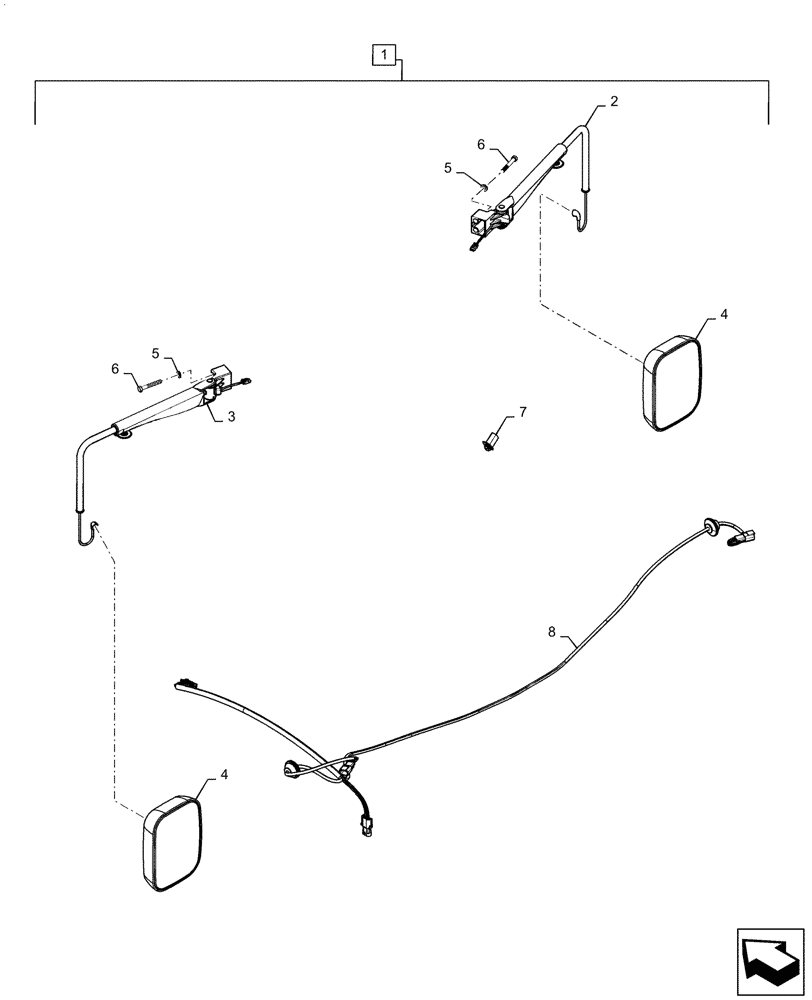

Запчасти Case IH STEIGER 485 (04-42) - VAR - 719523016 - ELECTRIC MIRROR KIT (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Electric Mirror Kit, Incl 2 - 8, Order Through Wholegoods 719523016

1шт.

2

87363082

ARM

RH, Mirror W/ Harness

1шт.

3

87363077

ARM

LH, Mirror W/ Harness

1шт.

4

87363066

MIRROR,238mm x 328mm

2шт.

5

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

6

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

7

280627A1

SWITCH, MIRROR ADJUS

Mirror Control

1шт.

8

87378212

HARNESS

Power Mirror, Start Serial: Z7F108000

1шт.
