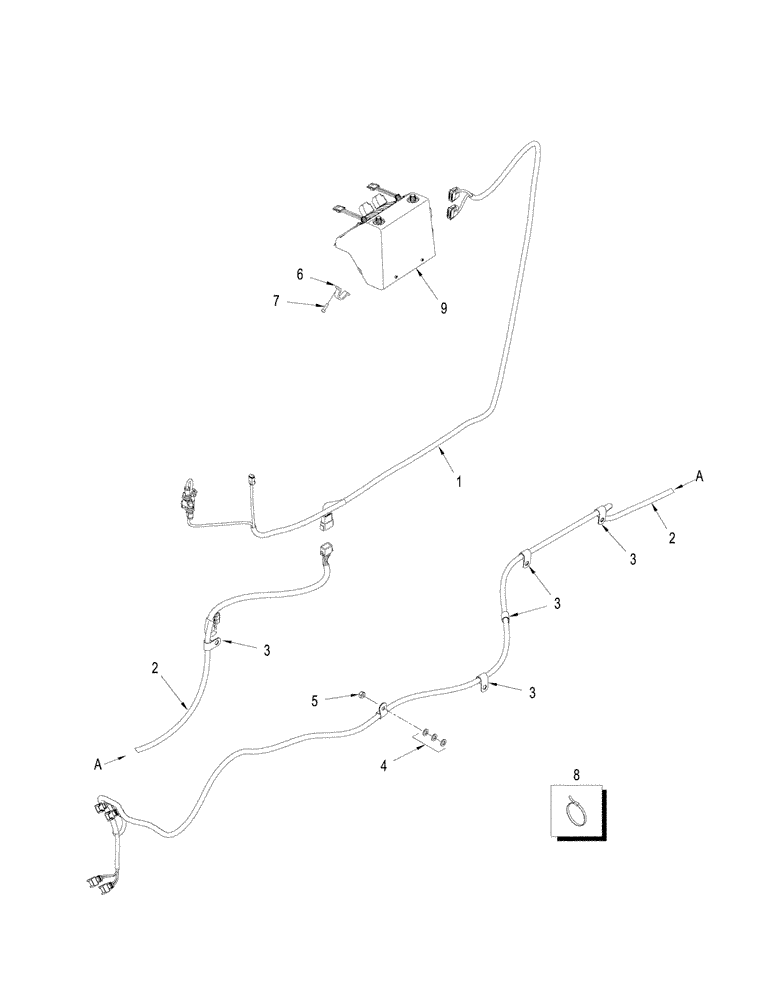

Запчасти Case IH STEIGER 485 (04-33) - WIRING - TWIN FLOW HYDRAULIC CONTROLS (04) - ELECTRICAL SYSTEMS

1

87538148

HARNESS

Cab, Twin Flow

1шт.

2

430835A1

HARNESS

Chasis, Twin Flow

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

5

829-1310

NUT,M10, Cl 10

1шт.

6

412027A2

CLAMP

Pipe

2шт.

7

565-104

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

12шт.

9

87518273

CONTROL UNIT

Box Assy., Twin Flow, See Figure: 04-34

1шт.
