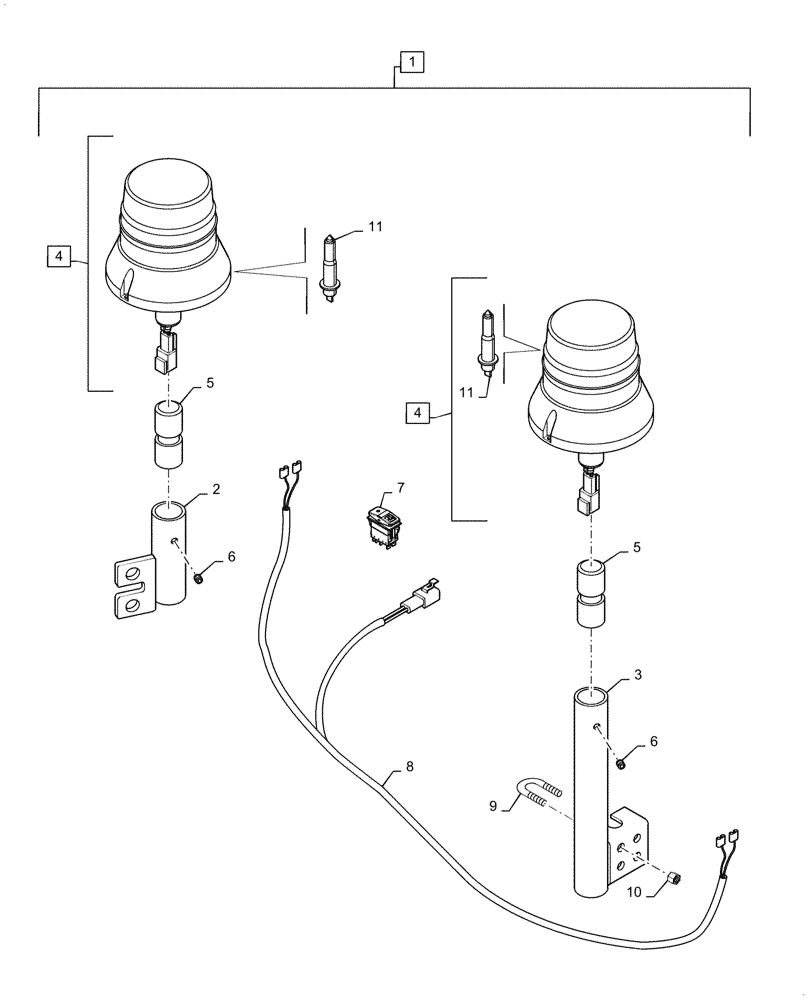

Запчасти Case IH STEIGER 485 (04-31) - VAR - 719622016 - DUAL BEACON KIT (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Dual Beacon Kit, Incl 2 - 10, Order Through Wholegoods 719622016

1шт.

2

84191275

MOUNT

LH, Beacon

1шт.

3

387938A2

SUPPORT ASSY.

RH, Beacon Mount

1шт.

4

84337818

BEACON

Incl 11

2шт.

5

244106A1

ELEC CONNECTOR

Beacon Adapter

2шт.

6

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

2шт.

7

87414325

SWITCH

Beacon/Strobe

1шт.

8

396484A1

HARNESS

Beacon Lights

1шт.

9

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

86616248

BULB,H1, 12V, 55W

2шт.
