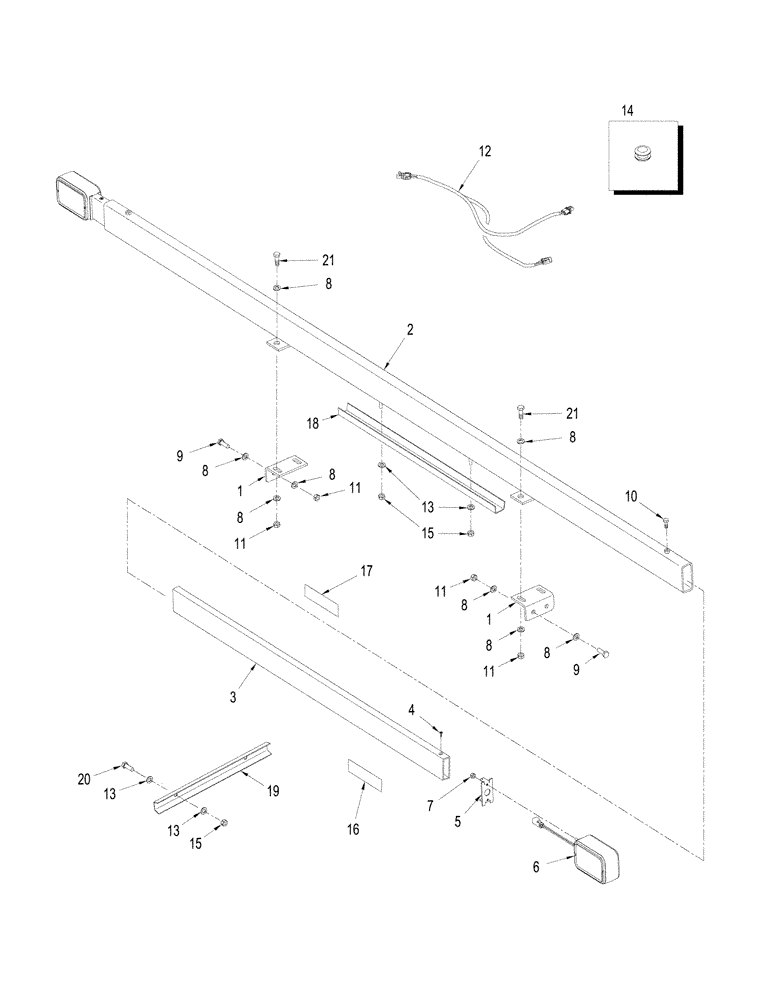

Запчасти Case IH STEIGER 485 (04-29) - LAMPS - MARKER (04) - ELECTRICAL SYSTEMS

1

402164A2

BRACKET

Mounting, Marker Lamps

2шт.

2

87348484

TUBE

Center, Marker Lamps

1шт.

3

87348486

TUBE,1227.50 mm L

Inner, Marker Lamps

1шт.

4

843-2512

SCREW,Flat , M5 x 12mm, Cl 4.8

4шт.

5

362496A1

BRACKET

Support, Marker Lamp

2шт.

6

367321A1

LAMP

Warning, See Figure 04-28

2шт.

7

824-1405

NUT,M5, Cl 5

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

87520424

HARNESS

Marker Lamp

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

Wheel Tractor

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

QUADTRAC Tractor

1шт.

14

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

297221A1

DECAL

Red and Orange

4шт.

17

297223A1

DECAL

Yellow

4шт.

18

402168A1

CHANNEL

Wire Guard

1шт.

19

330164A2

GUARD

Wire Harness

1шт.

Wheel Tractor

1шт.

19

362624A1

CHANNEL

Wire Guard

1шт.

QUADTRAC Tractor

1шт.

20

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

Wheel Tractor

1шт.

20

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

QUADTRAC Tractor

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
