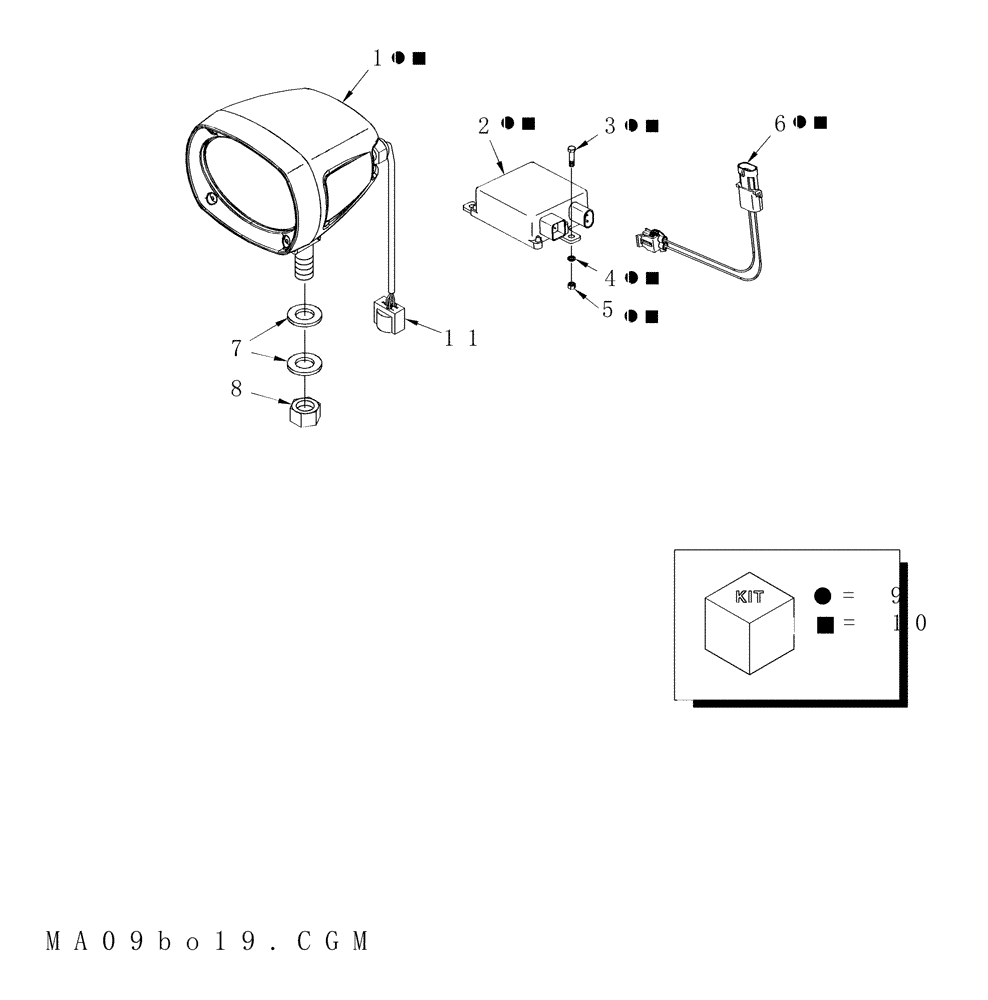

Запчасти Case IH STEIGER 485 (04-26) - LAMPS - REAR FRAME, H.I.D. (04) - ELECTRICAL SYSTEMS

1

87419587

LAMP

Flood, H.I.D., Serial Range: -Z8F109732

2шт.

1

87475205

LAMP,HID, 12V, 35W, Clear

Flood, H.I.D., Start Serial: Z8F109732

2шт.

1

87419591

LAMP

Trap, H.I.D., Serial Range: -Z8F109732

2шт.

1

87475202

LAMP

Trap, H.I.D., Start Serial: Z8F109732

2шт.

2

87475204

BALLAST

Rear H.I.D. If Ballast 447742A1 is Needed Order BSN Z8F109732 Ballast 87475204, 87475203 Ballast Cable & 87475205 Flood Lamp or 874752020 Trap Lamp

1шт.

2

87475204R

REMAN ELECT CONTROL

STEIGER 385, STEIGER 435, STEIGER 535, STEIGER 485, All 4WD TRACTOR, Rear H.I.D. (8/07-)

1шт.

2

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87475204

BALLAST

Rear H.I.D., Start Serial: Z8F109732

1шт.

2

87475204R

REMAN ELECT CONTROL

STEIGER 385, STEIGER 435, STEIGER 535, STEIGER 485, All 4WD TRACTOR, Rear H.I.D., Start Serial: Z8F109732 (8/07-)

1шт.

2

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

832-10405

NUT,M5 x .8, Cl 8

1шт.

6

87419583

CABLE

Ballast to Rear Harness, Serial Range: -Z8F109732

1шт.

6

87475203

CABLE TERMINAL

Ballast to Rear Harness, Start Serial: Z8F109732

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

719618003

FIP KIT

H.I.D., Rear Flood, Inc. 1 - 6

1шт.

10

719702013

FIP KIT

H.I.D., Rear Trap, Inc. 1 - 6

1шт.

11

87475201

BULB,HID

H.I.D. with Harness

2шт.

12

87722023

BULB,HID, 85V, 35W

HID, D1S OSRAM - Not Shown

1шт.
