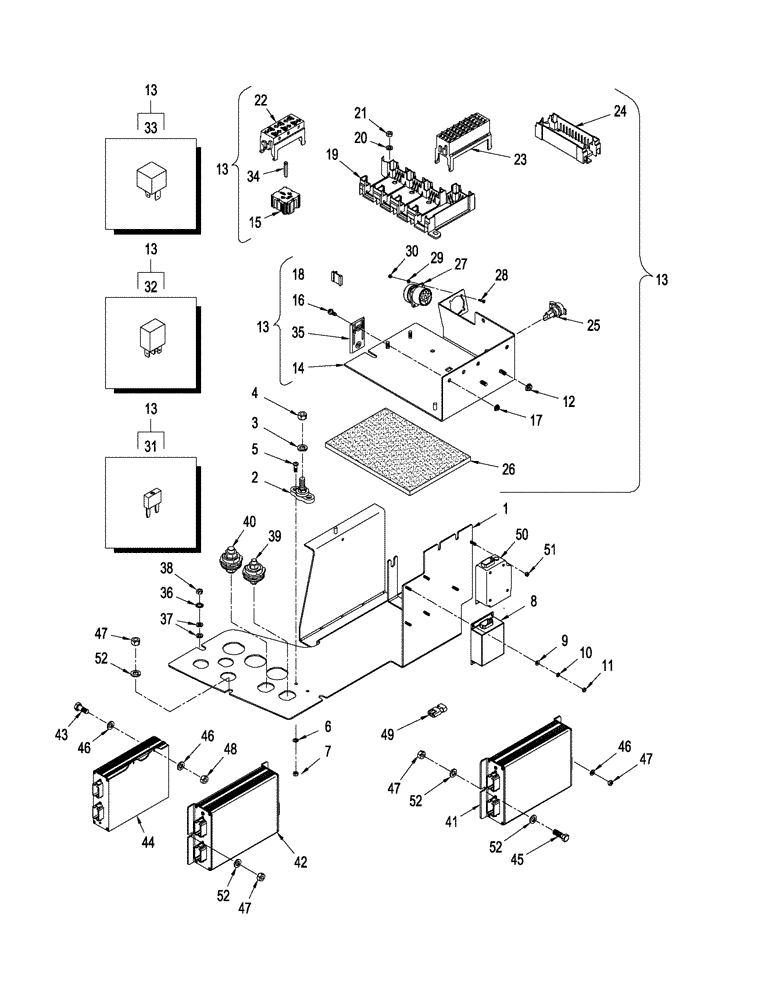

Запчасти Case IH STEIGER 485 (04-25) - ELECTRONIC MODULE ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

87416914

BRACKET

Mounting, RH Armrest Module

1шт.

2

20-1451T1

BLOCK

Junction

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

824-1405

NUT,M5, Cl 5

2шт.

8

84150025

MODULE

Flasher Interface, NA, 12-pin Connector

1шт.

8

1987397C2

FLASHER UNIT,12V

EU, 6-pin Connector

1шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

10

892-11004

LOCK WASHER,M4

4шт.

With Manual Shift Transmission

1шт.

11

824-1404

NUT,M4, Cl 5

4шт.

With Manual Shift Transmission

1шт.

11

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

With Power Shift Transmission

1шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

13

87537318

MODULE

Electronics, Incl 14 - 35, Also See Figure: 04-16

1шт.

With Manual Shift Transmission

1шт.

The Electronic Module Assy., Item 13 Also Includes the Main Cab Harness, See Figure: 04-16

1шт.

13

87537317

MODULE

Electronics, NA, Incl 14 - 35, Also See Figure: 04-16

1шт.

With Power Shift Transmission

1шт.

The Electronic Module Assy., Item 13 Also Includes the Main Cab Harness, See Figure: 04-16

1шт.

13

87537319

MODULE

Electronics, EU, Incl 14 - 35, Also See Figure: 04-16

1шт.

With Power Shift Transmission

1шт.

The Electronic Module Assy., Item 13 Also Includes the Main Cab Harness, See Figure: 04-16

1шт.

14

NSS

NOT SOLD SEPARAT

Plate, Mounting, Incl in 13

1шт.

15

367145A1

ELEC CONNECTOR,Female, 4 Pin

Terminal

5шт.

16

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

17

825-5145

NUT,M5, Flg Ser

3шт.

18

430116A1

LOCK

Terminal Block

1шт.

19

191135A1

BASE

Terminal Block Mounting

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

22

144417A1

CONNECTING BLOCK

3шт.

23

144421A1

CONNECTING BLOCK

2шт.

24

194319A1

FUSE

1шт.

25

300655A1

POWER SOCKET

1шт.

26

349062A1

PAD, RUBBER

1шт.

27

310057A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

28

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

29

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

30

824-1403

NUT,M3, Cl 5

4шт.

31

121416A1

FUSE,30A, Mini, Green

1шт.

31

121415A1

FUSE,25A, Mini, Clear

1шт.

31

121414A1

FUSE,20A, Mini, Yellow

1шт.

31

121413A1

FUSE,15A, Mini, Blue

1шт.

31

121412A1

FUSE,10A, Mini, Red

1шт.

31

121411A1

FUSE,7.5A, Mini, Brown

1шт.

31

121410A1

FUSE,5A, Mini, Tan

1шт.

31

368224A1

DIODE

Mini, 1 amp, Differential Lock

1шт.

32

87414866

RELAY,12V, 20A

20 amp

1шт.

33

368459A1

RELAY,12V, 70A

70 amp

1шт.

34

367146A1

WEDGE

Terminal Block

4шт.

35

367147A1

BRACKET

Mounting, Terminal

3шт.

36

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

39

A187523

JUNCTION BLOCK

1шт.

With Manual Shift Transmission

1шт.

39

190158A1

BLOCK

1шт.

With Power Shift Transmission

1шт.

40

311430A1

BLOCK

Junction

1шт.

41

87354994

CONTROL UNIT

Three Point Hitch

1шт.

Download Software from Service Tool.

1шт.

41

323758A4R

REMAN ELECT CONTROL

Reman for New PN 87354994

1шт.

41

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

42

399302A3

CONSOLE

Auxiliary

1шт.

Download Software from Service Tool.

1шт.

43

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

44

87709243

ECU

Transmission, Hardware Identifier: 508, Version 1.1.0.0, Serial Range: Z6F105039-Z8F111500

1шт.

Download Software from Service Tool.

1шт.

44

84140391

ECU

Transmission, Hardware Identifier: 508, Version 1.2.0.0, Start Serial: Z8F111501

1шт.

84140391R

REMAN ELECT CONTROL

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 all start Serial: Z8F111501 (8/07-)

1шт.

84140391C

CORE-ELECTRONIC CONT

Return Number

1шт.

45

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

46

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

48

832-10405

NUT,M5 x .8, Cl 8

2шт.

49

87537124

CONTACT HOUSING

Jumper

1шт.

50

86989612

ECU

ECU ISO, If Used

1шт.

50

86989612R

REMAN-MODULE

MODULE

1шт.

50

86989612C

CORE-MODULE

CORE-MODUL Return Number, MODULE

1шт.

84473221R

REMAN-MODULE

STEIGER 485,STEIGER 385,STEIGER 435,STEIGER 535 ALL (8/07-), Reman For New P/N 86989612

1шт.

84473221C

CORE-MODULE

Return Number

1шт.

51

832-10406

NUT,M6 x 1, Cl 8

2шт.

52

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
