Запчасти Case IH STEIGER 485 (04-18) - HARNESS - FRONT FRAME (04) - ELECTRICAL SYSTEMS

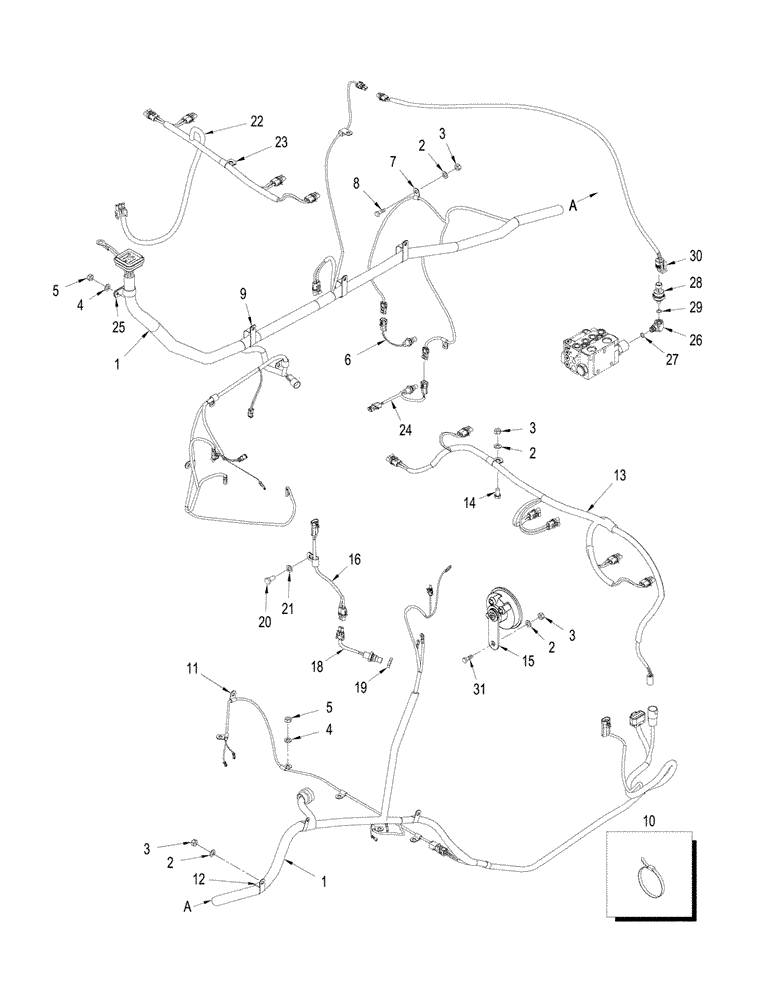

Схема запчастей Case IH STEIGER 485 - (04-18) - HARNESS - FRONT FRAME (04) - ELECTRICAL SYSTEMS
3
4
3
13
25
8
22
9
14
21
1
10
11
18
29
28
6
2
23
4
2
12
24
16
19
2
31
5
3
27
3
1
30
7
15
2
5
26
20

Артикул

Название

Примечание

Количество

1

87398406

HARNESS

Front Frame

1шт.

1

87658586

HARNESS

Frant Frame - EURO

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

11шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

330124A1

SWITCH

Tempature, Axle Lube

1шт.

7

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

9

L111928

CLAMP

Double

3шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Steering Harness

2шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

12

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

13

87337669

HARNESS

Light Bar

1шт.

STEIGER 385 / 435

1шт.

13

87337671

HARNESS

Light Bar

1шт.

STEIGER 485 / 535

1шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

15

87049215

HORN

FC9

1шт.

16

87545505

HARNESS

Tranmission, Manual

1шт.

17

87376305

HARNESS

Tranmission, Power Shift, Not Illustrated

1шт.

18

A186004

SENSOR

Transmission Engine Speed

1шт.

19

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

20

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

87655037

HARNESS

Front Lower Wipers

1шт.

23

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

24

339529A1

PRESSURE SWITCH

Park Brake

1шт.

25

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

26

87539795

ELBOW

90, M12 or x 14 fc sl

1шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

375644A1

SENSOR

Steering Pressure, Inc. 29

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

87551744

WIRE HARNESS

Steering Pressure Sensor

1шт.

31

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 36
