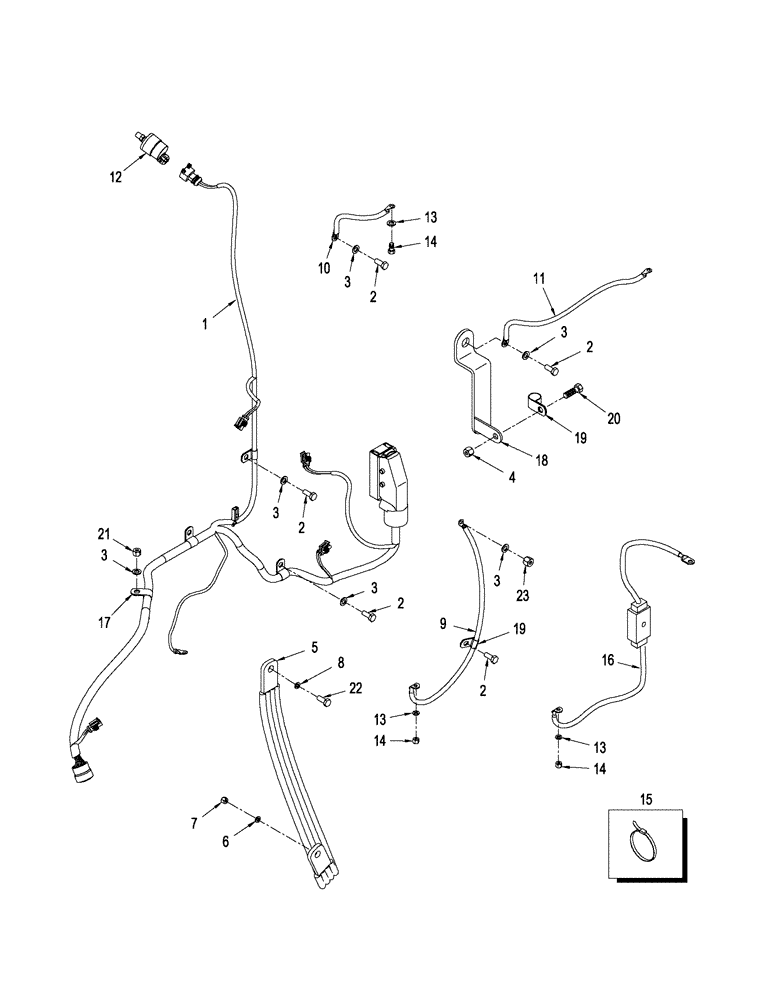

Запчасти Case IH STEIGER 485 (04-14) - HARNESS - ENGINE, STEIGER 385 / 435 & 485 (04) - ELECTRICAL SYSTEMS

1

87516330

HARNESS

Engine

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

5

87362573

GROUND CABLE

Engine to Chassis Ground

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

7

829-1412

NUT,M12, Cl 10.9

1шт.

8

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

1шт.

9

87548591

CABLE

Heater, Serial Range: Relay-Fuse

1шт.

10

87548592

CABLE

, Serial Range: Heater-Ground

1шт.

11

87353517

GROUND CABLE

A/C

1шт.

12

293797A1

RESTRICTION SWITCH

Air

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

832-10406

NUT,M6 x 1, Cl 8

4шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie, 7" - 8"

7шт.

16

87542685

CABLE

Alternator to Grid Heater

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

18

87537694

BRACKET

Alternator Cable

1шт.

19

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

2шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

87384304

BOLT,Hex, M18 x 2 x 50mm, Cl 10.9

M18 x 50, CL10.9

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
