Запчасти Case IH STEIGER 480 (04-09) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

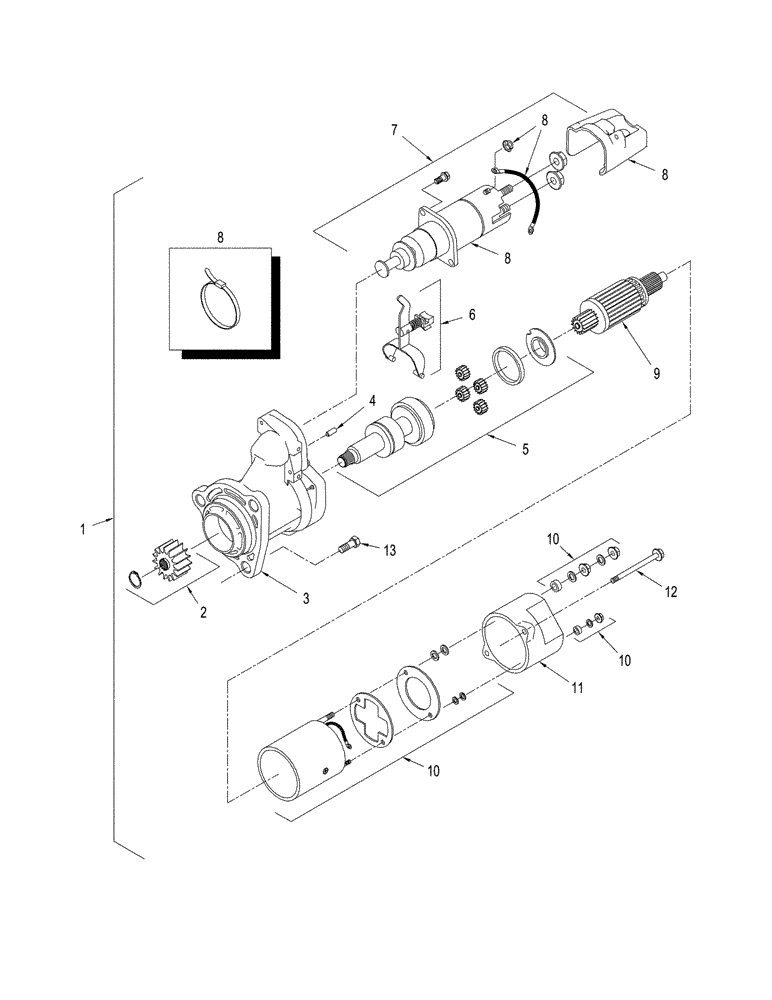

Схема запчастей Case IH STEIGER 480 - (04-09) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS
2
5
1
8
7
13
8
6
3
11
10
12
9
10
8
8
4
10

Артикул

Название

Примечание

Количество

1

87439325

STARTING MOTOR

24V, 39MT-HD, Delco Remy, Inc. 2 - 12

1шт.

87439325R

REMAN-STARTER

STEIGER 480, STEIGER 530 both 4WD TRACTOR (ASN Z6F105001), STX480, STX530 both CASE IH 4WD TRACTOR (BTW Z6F100023 - Z6F105001)

1шт.

87439325C

CORE-STARTER

Return Number

1шт.

2

87429796

PINION

Assy.

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

5

87429799

DRIVE ASSY.

Without Pinion Kit

1шт.

6

87429793

LEVER ASSY.

1шт.

7

87429797

KIT

24V, With Jump Start Shield

1шт.

8

87454482

FIP KIT

Jump Start

1шт.

9

87429802

ARMATURE

24V

1шт.

10

87429794

BRUSH ASSY.

24V

1шт.

11

87429800

HOUSING

Communicator End

1шт.

12

87429804

BOLT

2шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Mounting, 2" x 1/16", Gr 8.8

3шт.

Order from Your Cummins Engine Dealer

1шт.

Выбрано товаров: 16
