Запчасти Case IH STEIGER 470 (90.150.BJ[02]) - CAB SKIRT, DELUXE CAB, WITH SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

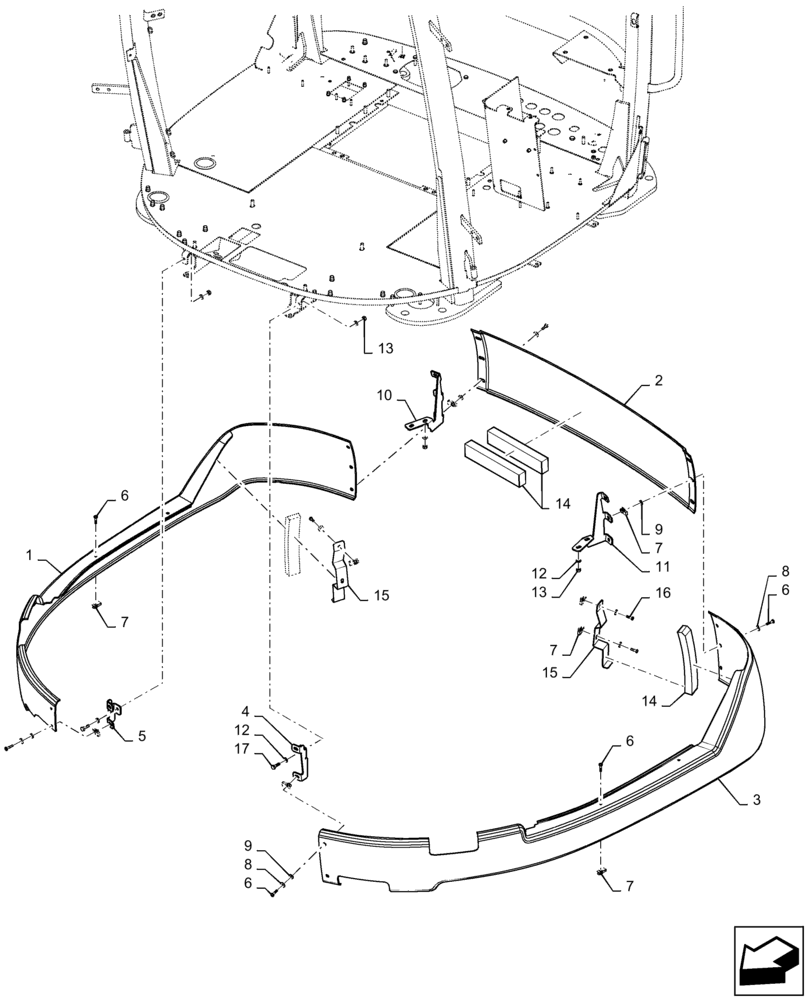

Схема запчастей Case IH STEIGER 470 - (90.150.BJ[02]) - CAB SKIRT, DELUXE CAB, WITH SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
12
14
12
1
7
6
6
7
3
2
7
10
14
16
8
15
9
11
15
5
4
13
13
9
7
6
8
6

Артикул

Название

Примечание

Количество

1

84598210

SKIRT COVER

Suspended Cab, RH

1шт.

2

84598208

SKIRT COVER

Suspended Cab, Rear

1шт.

3

84598211

SKIRT COVER

Suspended Cab, LH

1шт.

4

84372061

BRACKET, SUPPORTING

Front Skirt Mounting, LH

1шт.

5

84478662

BRACKET

Front Skirt Mounting, LH

1шт.

6

47447686

SCREW,Phillips Drive, Pan HD, M6 x 25mm, Cl 4.8

14шт.

7

404882A1

SPRING NUT,M6

18шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

9

47447682

RUBBER WASHER,5.8mm ID x 15.9mm OD x 2.4mm Thk

10шт.

10

84371547

BRACKET, SUPPORTING

Rear Skirt, RH

1шт.

11

84371548

BRACKET, SUPPORTING

Rear Skirt, LH

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

14

403325A2

FOAM,30mm x 50mm x 250mm

4шт.

15

47448852

BRACKET

Cab Skirt, Side

2шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 17
