(55.518.BL[01]) - WINDSHIELD WASHER HARNESS, BSN ZFF308000

Запчасти Case IH STEIGER 470 (55.518.BL[01]) - WINDSHIELD WASHER HARNESS, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS

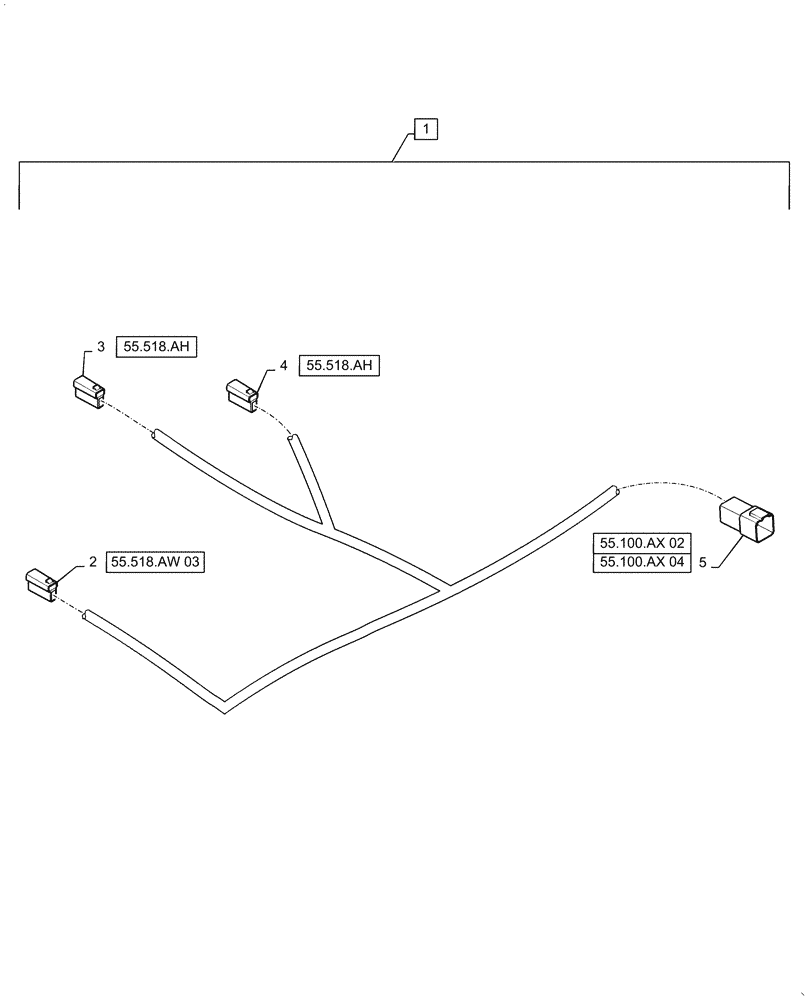

Схема запчастей Case IH STEIGER 470 - (55.518.BL[01]) - WINDSHIELD WASHER HARNESS, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS
3
55.518.ah
1
5
55.518.aw 03
55.518.ah
55.100.ax 02
55.100.ax 04
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84297600

HARNESS

Windshield Washer Bottles, Incl 2 - 5

1шт.

2

877291R1

ELEC CONNECTOR,Female

Front Washer Pump, C143

1шт.

3

877291R1

ELEC CONNECTOR,Female

Front Lower Washer Pump, C144

1шт.

4

877291R1

ELEC CONNECTOR,Female

Rear Washer Pump, C145

1шт.

5

225326C1

ELEC CONNECTOR,Male, 4 Pin

To Front Frame Harness, C148F

1шт.
