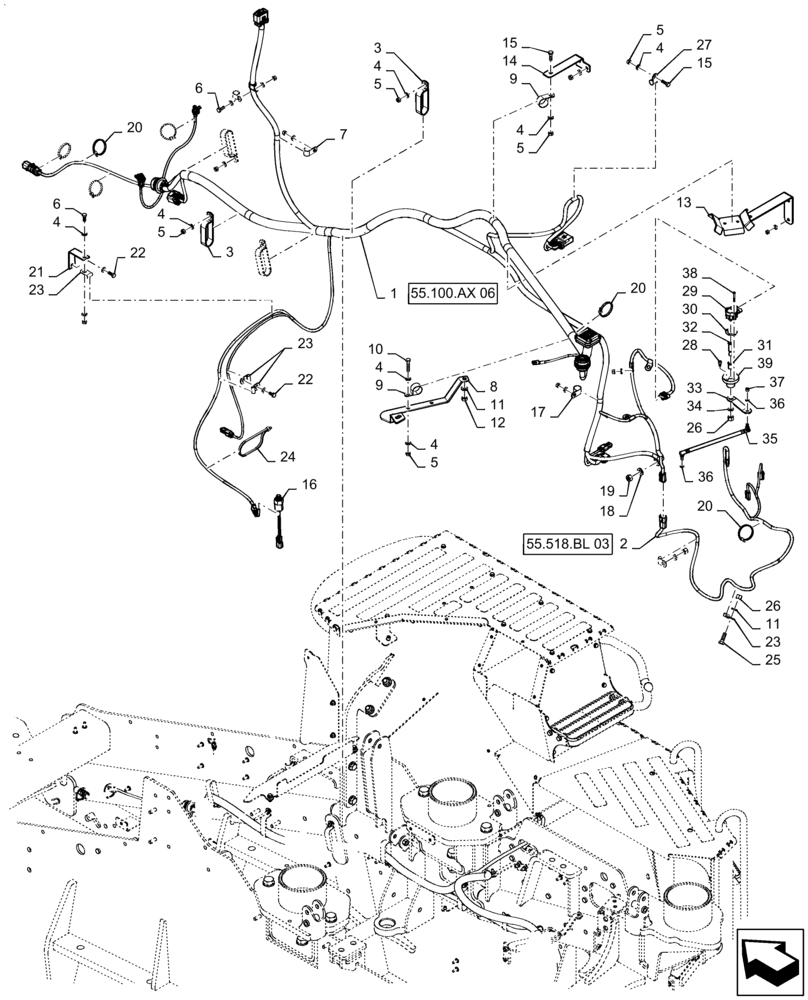

Запчасти Case IH STEIGER 470 (55.100.AX[05]) - FRONT FRAME HARNESS MOUNTING, W/O CAB SUSPENSION, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

1

47694000

WIRE HARNESS

Front Frame, W/O Cab Suspension

1шт.

2

47706520

WIRE HARNESS

Washer Bottle

1шт.

3

87561071

CLAMP

Double

5шт.

4

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

25шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

20шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

8

84427703

BRACKET

Harness, Rear Cab

1шт.

9

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

10

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

47394840

BRACKET

Cab Harness Cradle

1шт.

14

84383836

BRACKET

Harness

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

47655851

PRESSURE SWITCH

Front Axle Lube

1шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

21

416512A1

BRACKET

Harness Support

1шт.

22

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

23

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

27

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

28

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

29

47700274

SENSOR

Steering Angle

1шт.

30

47704915

GASKET

Steering Angle Sensor

1шт.

31

47876147

BUSHING,12.02mm ID x 20mm L

1шт.

32

47889900

SHAFT

Rotary Sensor

1шт.

33

47890369

BRACKET

Steering Angle Sensor

1шт.

34

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

35

47698979

ROD,247.2mm L

1шт.

36

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

37

832-10406

NUT,M6 x 1, Cl 8

1шт.

38

47878197

SCREW,Torx, Pan HD, M4 x 35mm, Cl 4.8

2шт.

39

47882131

COLLAR

Steering Angle Sensor

1шт.
