Запчасти Case IH STEIGER 470 (39.140.AF[03]) - FRONT WEIGHT CARRIER (39) - FRAMES AND BALLASTING

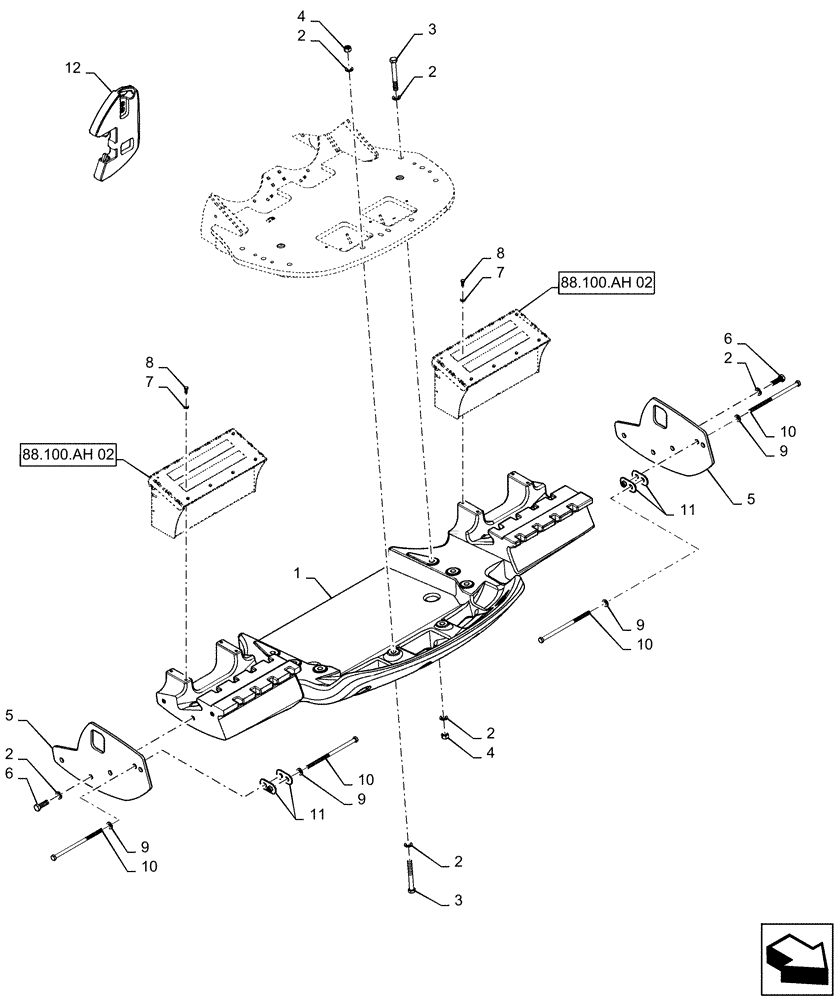

Схема запчастей Case IH STEIGER 470 - (39.140.AF[03]) - FRONT WEIGHT CARRIER (39) - FRAMES AND BALLASTING
8
88.100.ah 02
88.100.ah 02
8
11
9
2
2
5
2
10
4
6
3
4
10
2
3
10
5
7
9
11
12
10
2
1
9
7
6
2
9

Артикул

Название

Примечание

Количество

1

84206444

BALLAST

Front Weight Carrier

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22шт.

3

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

4

829-1420

NUT,M20, Cl 10

8шт.

5

84206433

MOUNT

Side Plate

2шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

9

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

10

627-16320

BOLT,Hex, M16 x 2 x 320mm, Cl 10.9, Full Thd

4шт.

11

229483A2

RETAINER

Front Weight

4шт.

12

405846A3

WEIGHT

Suitcase

1шт.

Выбрано товаров: 12
