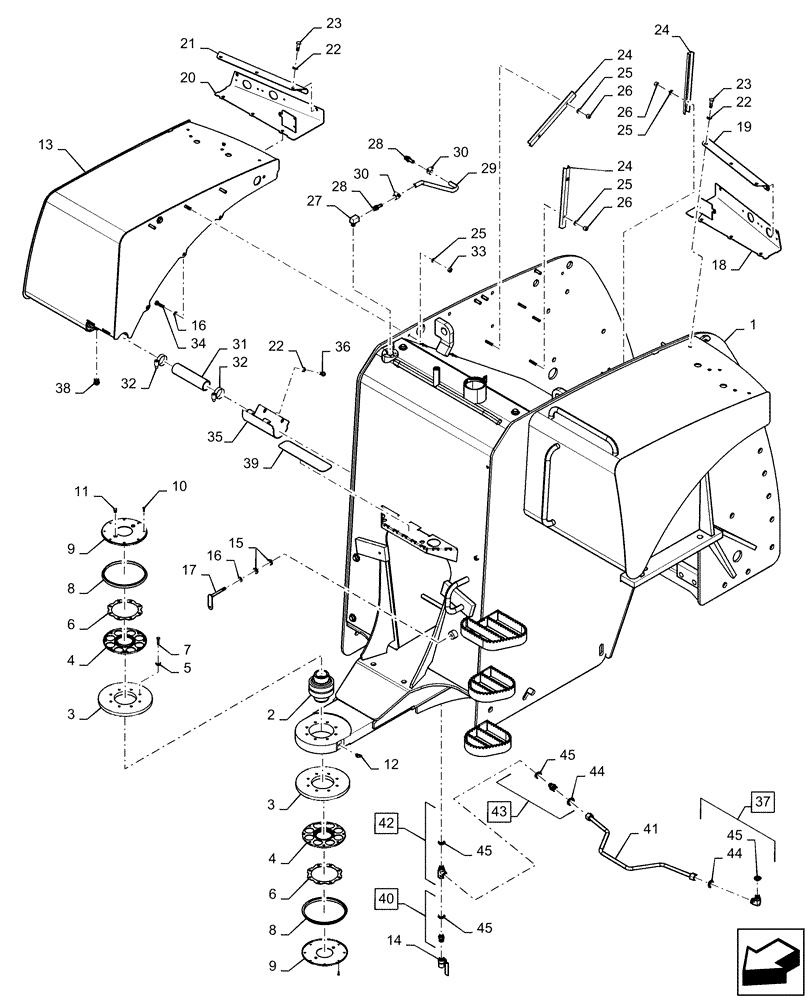

Запчасти Case IH STEIGER 470 (39.100.AS[04]) - REAR FRAME, 400, 420, 450, 470, ASN ZEF303001 (39) - FRAMES AND BALLASTING

1

47616567

FRAME

Rear, Fuel Tank

1шт.

2

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

Extended Spherical Plain

1шт.

3

330032A1

COVER

Retaining

2шт.

4

87365383

BEARING ASSY

Frame Pivot

2шт.

5

432444A1

SPACER

Retainer

16шт.

6

430250A1

RETAINER

Plate

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

433478A1

SEAL

Outer

2шт.

9

87365381

COVER

Frame Pivot

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

4шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

84152784

FUEL TANK

RH Weld

1шт.

14

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel Tank Drain

1шт.

15

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

10шт.

17

406390A1

HANDLE

Articulation Lock Storage

1шт.

18

47423446

PANEL

LH Light, Years: -30-SEP-15

1шт.

W/ Ballast Mount (Shown)

1шт.

18

47997362

PANEL

Light, LH, Start Year: 01-OCT-15

1шт.

W/O Ballast Mount

1шт.

19

84476765

MOUNTING PLATE

LH Light

1шт.

20

47423448

PANEL

Light, RH, Years: -30-SEP-15

1шт.

W/ Ballast Mount (Shown)

1шт.

20

47997364

PANEL

Light, RH, Start Year: 01-OCT-15

1шт.

W/O Ballast Mount

1шт.

21

84476772

MOUNTING PLATE

RH Light

1шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

18шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

24

84348150

CHANNEL

Wire Guard

3шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

27

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

28

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

29

84153077

HOSE

Formed Rubber

1шт.

30

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

Fuel Hose

2шт.

31

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

Transfer

1шт.

32

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

7шт.

34

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

35

84348159

COVER

Fuel Hose

1шт.

36

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

37

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

1" - 14 ORFS x 3/4" - 16 ORB, Incl 44 - 45

1шт.

38

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

3шт.

39

D55216

PAD,2" x 9"

2" x 9"

1шт.

40

47646702

ADAPTER,3/4" - 16 ORB x 1/2" - 14 NPT

Incl 45

1шт.

41

47648491

TUBE

Fuel Crossover

1шт.

42

84292714

TEE

3/4" - 16 ORB x 3/4" - 16 ORB x 3/4" - 16 ORB, Incl 35

1шт.

43

87351379

HYD CONNECTOR

1" - 14 ORFS x 3/4" - 16 ORB, Incl 44 - 45

1шт.

44

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

45

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
